DMOS 1A低压降稳压器 DMOS 1A Low-Dropout Regulator

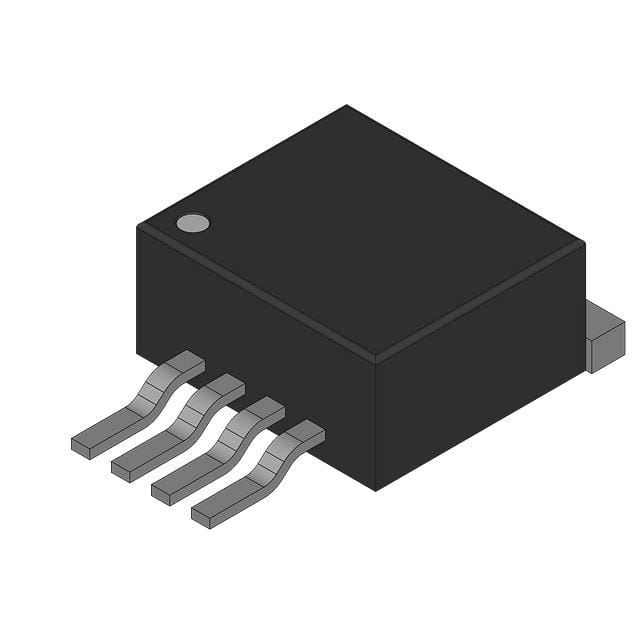

PMIC - 稳压器 - 线性 输出 1A DDPAK/TO-263-5
得捷:
IC REG LIN POS ADJ 1A DDPAK
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO REG104FA-AKTTT linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.003@10mA|0.23@1A V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1 A. By only needing an input voltage of 2.1 V with a maximum of 15 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.295 to 5.5 V, this is power management at its best. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.025@10mA|0.4@1A V. Its polarity is positive.
安富利:
LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 1.0A, Adj.1.295 to 5.5V, Low Noise, Fast Transient Response LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin5+Tab TO-263 T/R
Newark:
# TEXAS INSTRUMENTS REG104FA-AKTTT LDO Voltage Regulator, Adjustable, 2.1V-15V in, 230mV drop., 1.295V-5.5V/1A out, TO-263-5
输出接口数 1
输入电压DC 15.0V max
输出电压 1.295V ~ 5.5V
输出电流 1 A
供电电流 0.7mA ~ 1.8mA
静态电流 1.70 mA
输出电容类型 Ceramic
跌落电压 230 mV
调节输出数 1
输入电压Max 15 V
输入电压Min 2.1 V
输出电压Max 5.5 V
输出电压Min 1.295 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 2 %
输入电压 2.1V ~ 15V
安装方式 Surface Mount
引脚数 5

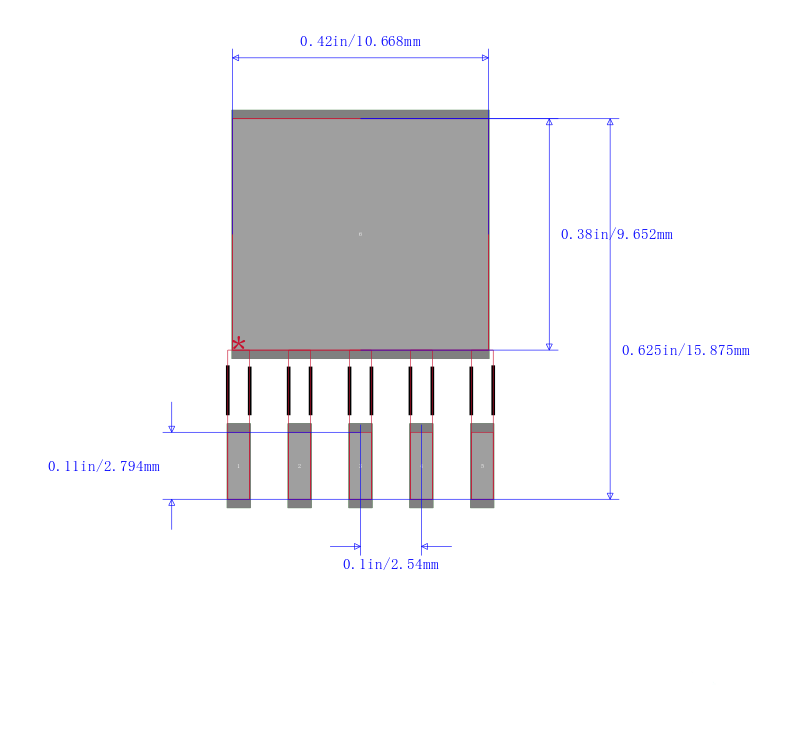

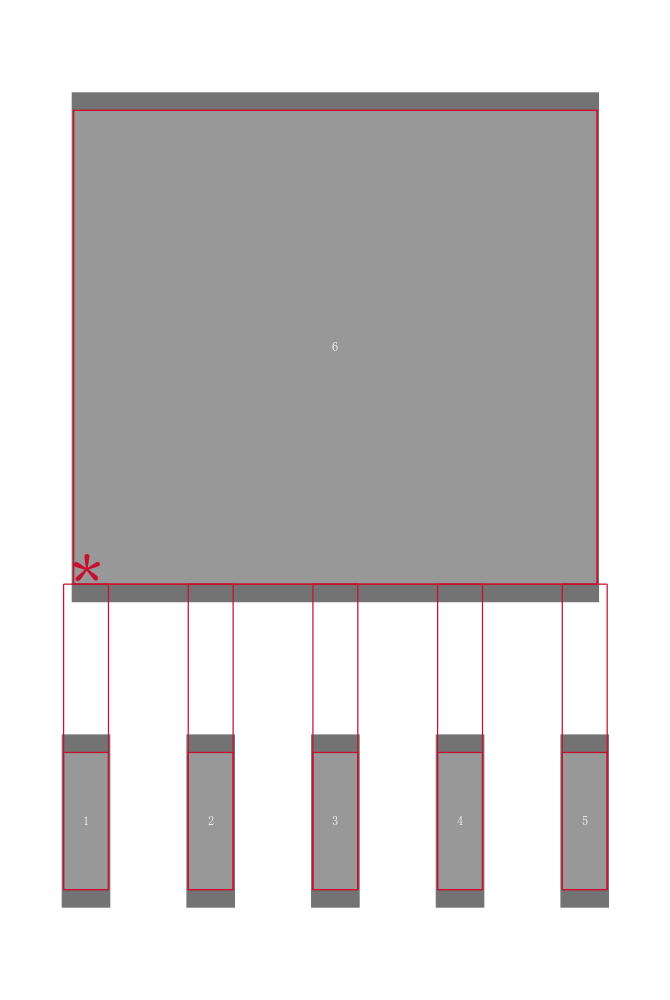

封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG104FA-AKTTT TI 德州仪器 | 当前型号 | 当前型号 |
REG104FA-A/500 德州仪器 | 类似代替 | REG104FA-AKTTT和REG104FA-A/500的区别 |
REG104FA-AKTTTG3 德州仪器 | 类似代替 | REG104FA-AKTTT和REG104FA-AKTTTG3的区别 |
REG104FA-A/500G3 德州仪器 | 功能相似 | REG104FA-AKTTT和REG104FA-A/500G3的区别 |
