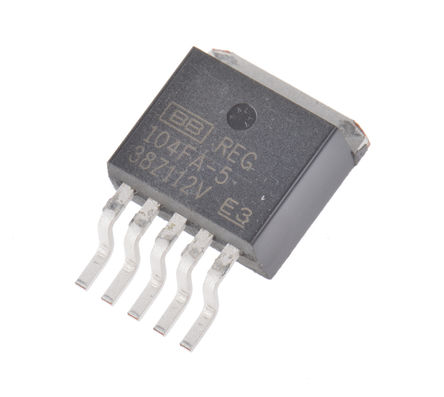

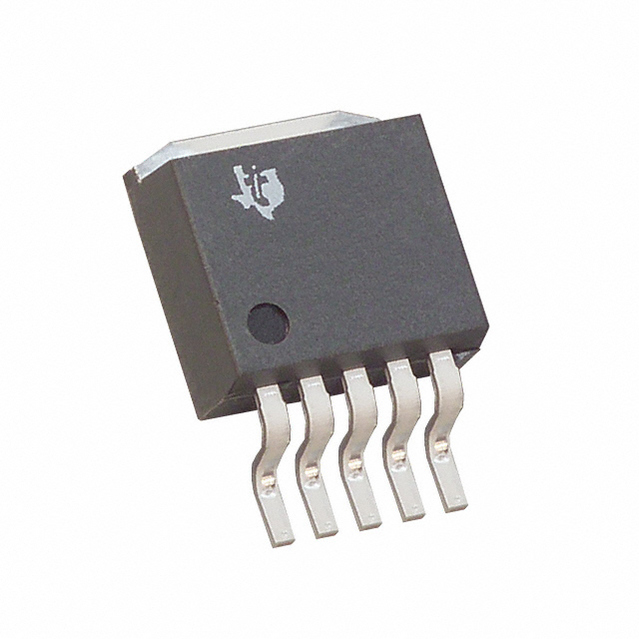

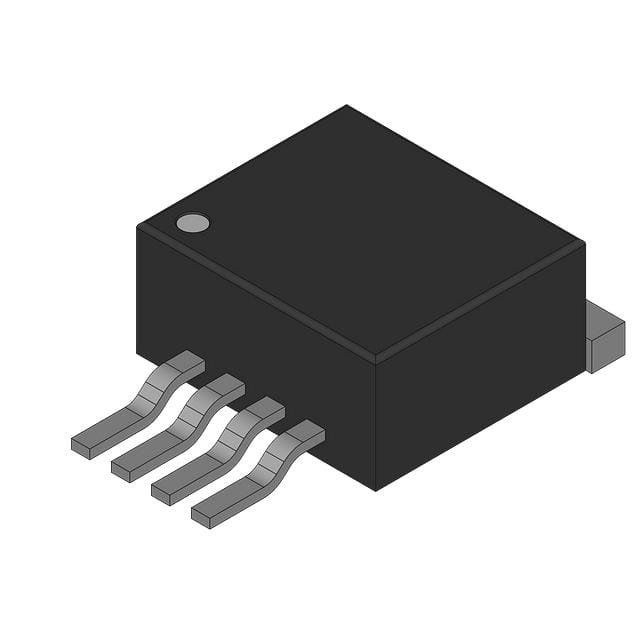

REG104FA-5KTTT

TEXAS INSTRUMENTS  REG104FA-5KTTT  固定电压稳压器, LDO, 2.1V至15V, 230mV压差, 5V输出, 1A输出, TO-263-5

LDO（低压降）线性稳压器，1A，REG104/REG1117 系列，Texas Instruments

得捷:
IC REG LIN 5V 1A DDPAK/TO263-5

欧时:
LDO（低压降）线性稳压器，1A，REG104/REG1117 系列，Texas Instruments### LDO（低压降）线性稳压器，Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

贸泽:
低压差稳压器 DMOS 1A LDO Reg

e络盟:
固定电压稳压器, LDO, 2.1V至15V, 230mV压差, 5V输出, 1A输出, TO-263-5

艾睿:
Stable power is ideal for better processing this LDO REG104FA-5KTTT linear regulator developed by Texas Instruments will help do so. Its typical dropout voltage at current is 0.32@1A|0.003@10mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 2.1 V and not exceeding a voltage of 15 V. With a fixed output that has a voltage of 5 V, this is power management at its best. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. The maximum dropout voltage is 0.5@1A|0.025@10mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.

安富利:
LDO Regulator Pos 5V 1A 6-Pin5+Tab TO-263 T/R

Verical:
LDO Regulator Pos 5V 1A 6-Pin5+Tab TO-263 T/R

Newark:
Fixed LDO Voltage Regulator, 2.1V to 15V, 230mV Dropout, 5Vout, 1Aout, TO-263-5

DeviceMart:
IC REG LDO 5V 1A 5-DDPAK
