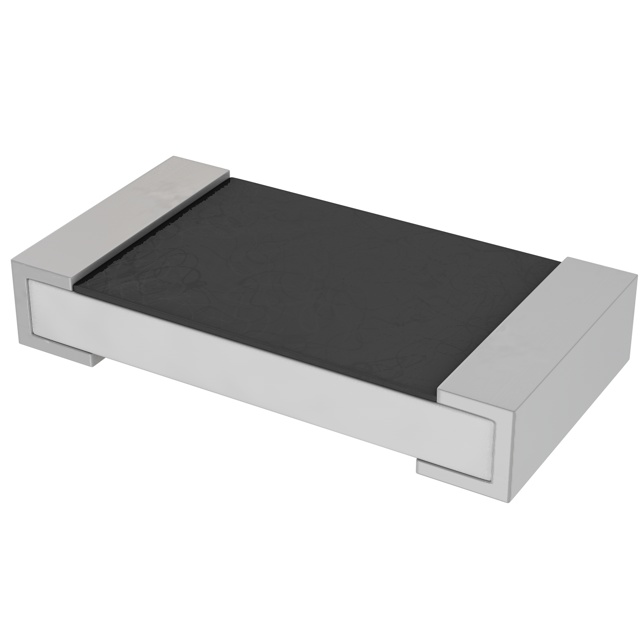

RC 系列 1206 0.25 W 3.6 kohm 5% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
立创商城:
3.6kΩ ±5% 250mW
得捷:
RES 3.6K OHM 5% 1/4W 1206
艾睿:
Use this RC1206JR-073K6L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 3.6K Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 5%. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology.
安富利:
Res Thick Film 1206 3.6K Ohm 5% 1/4W ±100ppm/°C Molded SMD Paper T/R
Chip1Stop:
Res Thick Film 3.2 x 1.6 mm 3.6K Ohm 5% 0.25W1/4W 100ppm/ C Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 1206; 3.6kΩ; 0.25W; ±5%; -55÷155°C
儒卓力:
**RC1206 3,6K 5% 0,25W **
额定电压DC 200 V
容差 ±5 %
额定功率 0.25 W
产品系列 RC
电阻 3.6 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
安装方式 Surface Mount
封装公制 3216

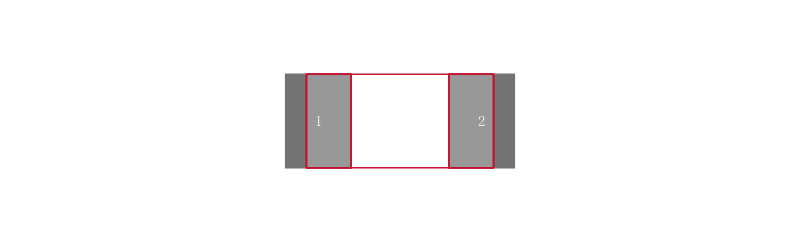

封装 1206
长度 3.1 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206JR-073K6L Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A3601JLHFT 国巨 | 完全替代 | RC1206JR-073K6L和9C12063A3601JLHFT的区别 |
232271151362 国巨 | 完全替代 | RC1206JR-073K6L和232271151362的区别 |
RC1206JR-073K6 国巨 | 完全替代 | RC1206JR-073K6L和RC1206JR-073K6的区别 |
