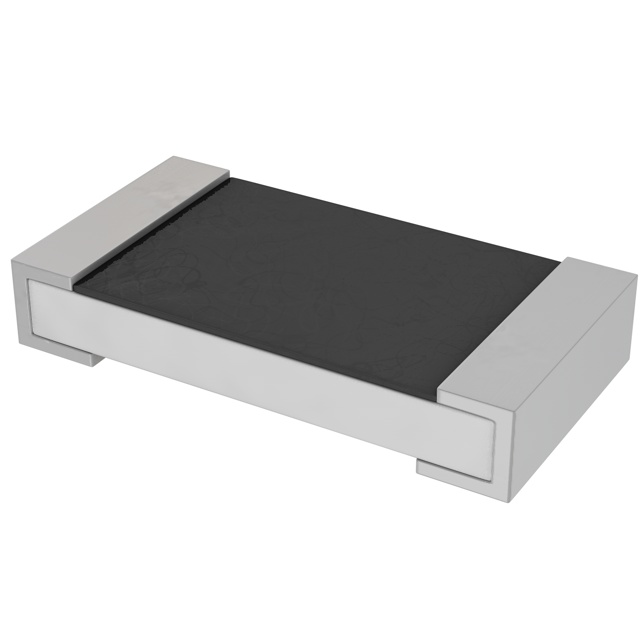

YAGEO PHYCOMP RC1206JR-07680KL 片式电阻器, 表面贴装, 厚膜, RC系列, 680 kohm, 200 V, 1206 [3216公制], 250 mW, ± 5%
SMD器/芯片电阻器
得捷:
RES 680K OHM 5% 1/4W 1206
立创商城:
680kΩ ±5% 250mW
贸泽:
Thick Film Resistors - SMD 680K OHM 5%
e络盟:
YAGEO PHYCOMP RC1206JR-07680KL 片式电阻器, 表面贴装, 厚膜, RC系列, 680 kohm, 200 V, 1206 [3216公制], 250 mW, ± 5%
艾睿:
Use this RC1206JR-07680KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 680K Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This device is made with thick film technology. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C.
富昌:
RC Series 1206 0.25 W 680 kOhms 5% ±100 ppm/°C SMT Thick Film Chip Resistor
Chip1Stop:
Res Thick Film 3.2 x 1.6 mm 680K Ohm 5% 0.25W1/4W 100ppm/ C Molded SMD Paper T/R

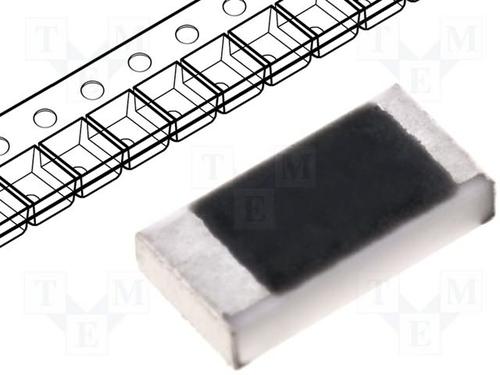

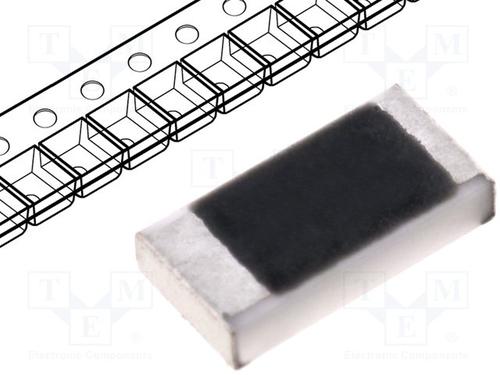

TME:
Resistor: thick film; SMD; 1206; 680kΩ; 0.25W; ±5%; -55÷155°C
Verical:
RC1206JR-07680KL
儒卓力:
**RC1206 680K 5% 0,25W **
额定电压DC 200 V
容差 ±5 %
额定功率 0.25 W
产品系列 RC
电阻 680 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 工业, Industrial, Portable Devices, 便携式器材, 电源管理, Power Management, 消费电子产品, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206JR-07680KL Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A6803JLHFT 国巨 | 完全替代 | RC1206JR-07680KL和9C12063A6803JLHFT的区别 |
RC1206JR-07680K 国巨 | 完全替代 | RC1206JR-07680KL和RC1206JR-07680K的区别 |
RC1206FR-07680KL 国巨 | 类似代替 | RC1206JR-07680KL和RC1206FR-07680KL的区别 |
