DMOS 1A低压降稳压器 DMOS 1A Low-Dropout Regulator
The REG104 is a family of low-noise, low-dropout linear regulators with low ground pin current. Its new DMOS topology provides significant improvement over previous designs, including low dropout voltage only 230mV typ at full load, and better transient performance. In addition, no output capacitor is required for stability, unlike conventional low dropout regulators that are difficult to compensate and require expensive low ESR capacitors greater than 1µF.
Typical ground pin current is only 1.7mA at IOUT = 1A and drops to 0.5µA in _not enabled_ mode. Unlike regulators with PNP pass devices, quiescent current remains relatively constant over load variations and under dropout conditions.
The REG104 has very low output noise typically 33µVRMS for VOUT = 3.3V with CNR = 0.01µF, making it ideal for use in portable communications equipment. On-chip trimming results in high output voltage accuracy. Accuracy is maintained over temperature, line, and load variations. Key parameters are tested over the specified temperature range 40°C to +85°C.

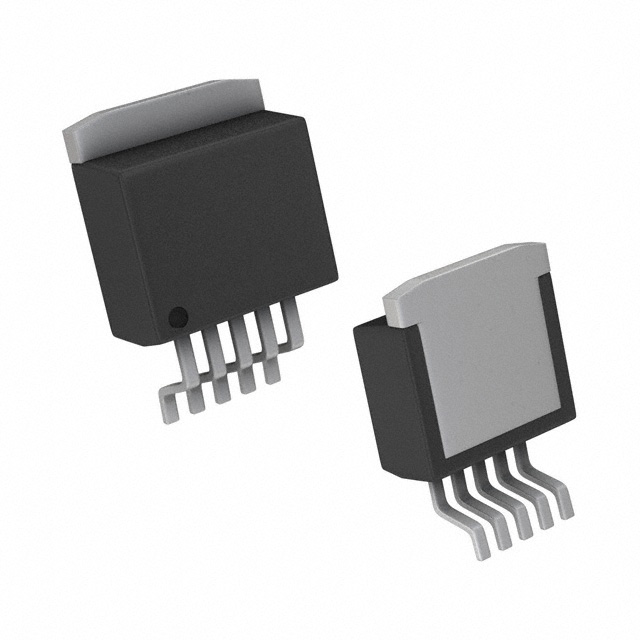

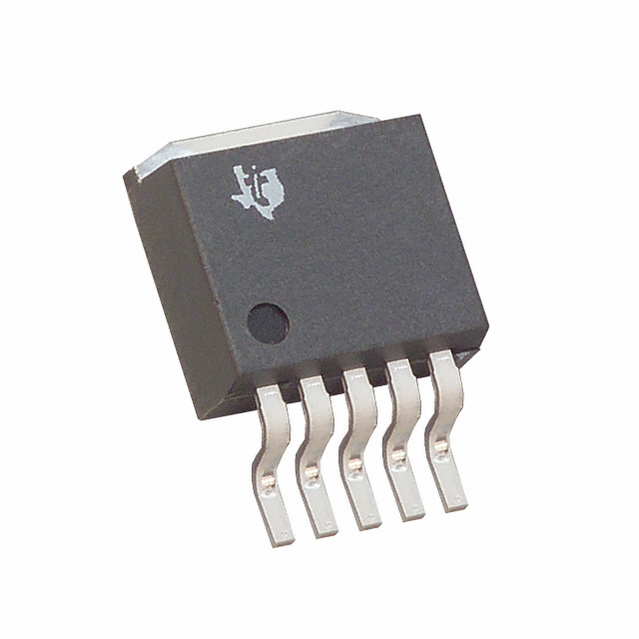

The REG104 is well protectedinternal circuitry provides a current limit which protects the load from damage. Thermal protection circuitry keeps the chip from being damaged by excessive temperature. The REG104 is available in the DDPAK-5 and the SOT223-5.
输出接口数 1
输入电压DC 15.0V max
输出电压 5 V
输出电流 1 A
供电电流 0.7mA ~ 1.8mA
静态电流 1.70 mA
输出电容类型 Ceramic
跌落电压 0.32V @1A
调节输出数 1
输入电压Max 15 V
输入电压Min 2.1 V
输出电压Min 5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 2 %
输入电压 ≤15 V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG104FA-5/500 TI 德州仪器 | 当前型号 | 当前型号 |
REG104FA-5KTTT 德州仪器 | 类似代替 | REG104FA-5/500和REG104FA-5KTTT的区别 |
REG104FA-5/500G3 德州仪器 | 类似代替 | REG104FA-5/500和REG104FA-5/500G3的区别 |
REG103FA-5/500 德州仪器 | 类似代替 | REG104FA-5/500和REG103FA-5/500的区别 |
