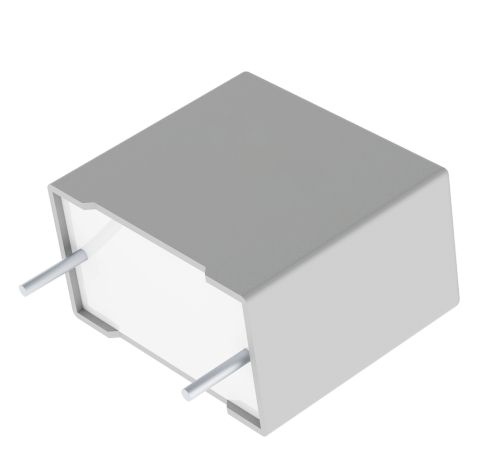

KEMET R60GN44705030K 膜电容, AEC-Q200 R60系列, 4.7 µF, ± 10%, PET聚酯, 160 V
The R60 Series is constructed of metallized polyester film wound or stacked technology with radial leads of tinned wire. Radial leads are electrically welded to the contact metal layer on the ends of the capacitor winding. The capacitor is encapsulated with thermosetting resin in a box material meeting the UL 94V-0 requirements. Automotive grade devices are available up to lead spacing 22.5mm and meet the demanding Automotive Electronics Council"s AEC-Q200 qualification requirements. Typical applications include blocking, coupling, decoupling, bypassing and interference suppression in low voltage applications such as automotive. Not suitable for across-the-line application see Suppressor Capacitors.
- .
- Voltage range: 50 - 1000 VDC
- .
- Capacitance range: 0.001 µF - 150.0 µF / Capacitance tolerance: ±5%, ±10%, ±20%
- .
- Lead spacing: 10.0 - 37.5 mm
- .
- Climatic category: 55/105/56 / Operating temperature range of -55°C to +105°C
- .
- Tape and reel packaging in accordance with IEC 60286-2
- .
- RoHS compliance and lead-free terminations
- .
- Self-healing
- .
- Automotive AEC-Q200 grades available up to pitch 22.5 mm
