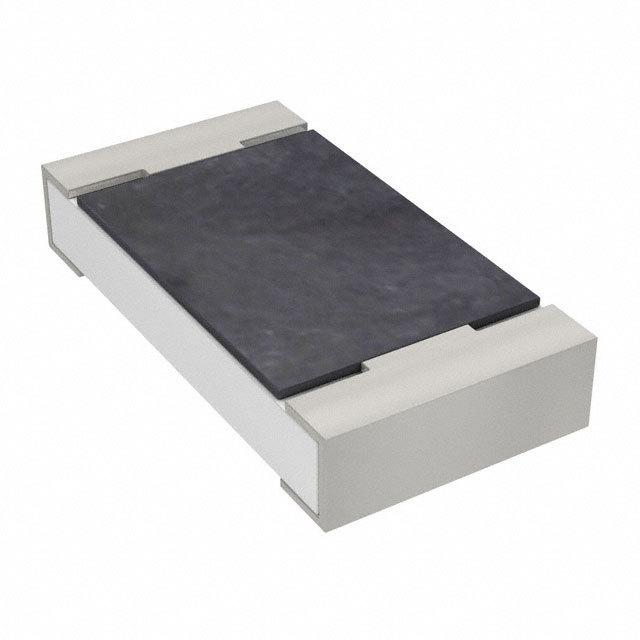

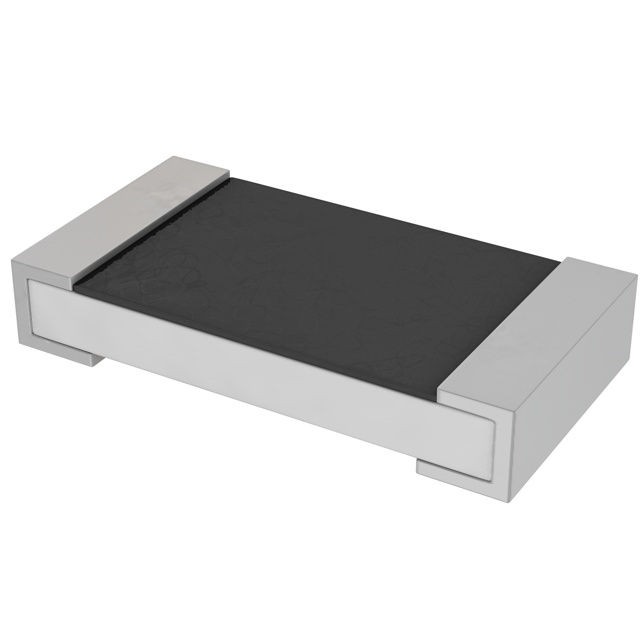

RC 系列 1206 0.25 W 51 kOhm 1 % ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 51K OHM 1% 1/4W 1206
立创商城:
51kΩ ±1% 250mW
艾睿:
Use this RC1206FR-0751KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 51K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This device is made with thick film technology. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C.
TME:
Resistor: thick film; SMD; 1206; 51kΩ; 0.25W; ±1%; -55÷155°C
儒卓力:
**RC1206 51,0K 1% 0,25W **
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 51 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
安装方式 Surface Mount
封装公制 3216
封装 1206

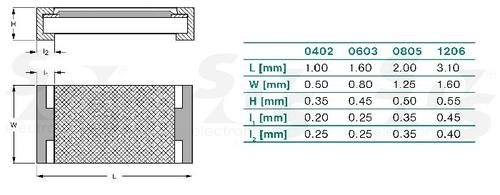

长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active

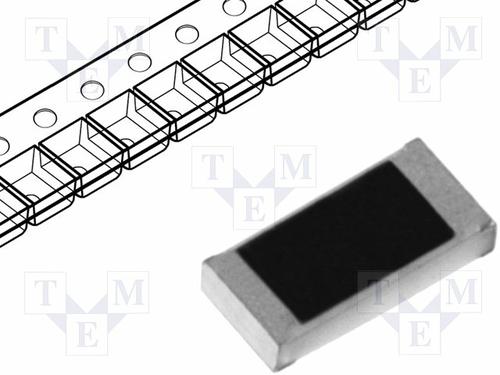

包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-0751KL Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A5102FKHFT 国巨 | 完全替代 | RC1206FR-0751KL和9C12063A5102FKHFT的区别 |
RC1206FR-0751K 国巨 | 完全替代 | RC1206FR-0751KL和RC1206FR-0751K的区别 |
RC1206JR-0751KL 国巨 | 类似代替 | RC1206FR-0751KL和RC1206JR-0751KL的区别 |
