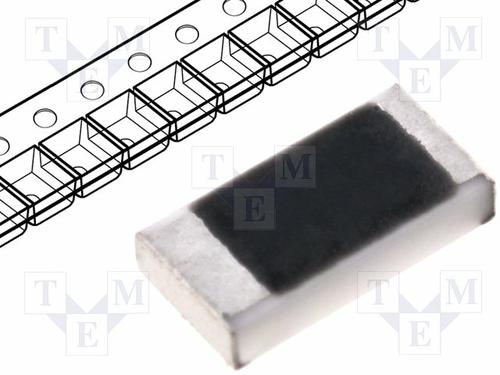

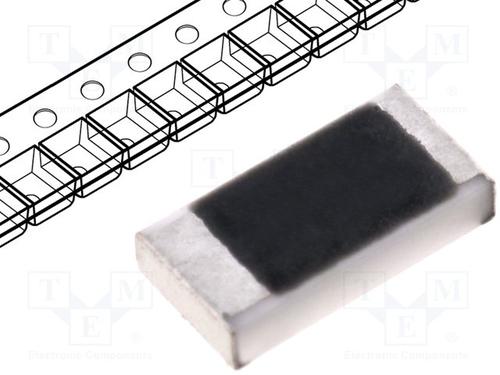

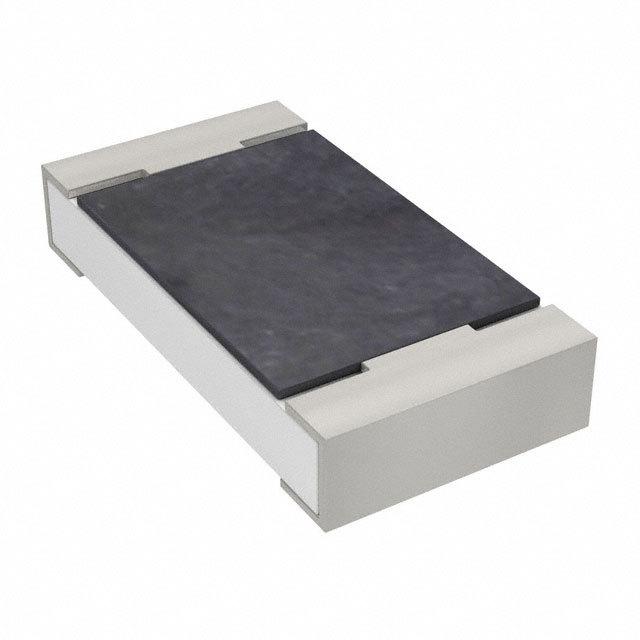

SMD电阻器/芯片电阻器
SMD器/芯片电阻器
得捷:
RES 9.1K OHM 1% 1/4W 1206
立创商城:
9.1kΩ ±1% 250mW
艾睿:
The RC1206FR-079K1L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This product has a resistance value of 9.1K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This device is made with thick film technology.
Chip1Stop:
Res Thick Film 3.2 x 1.6 mm 9.1K Ohm 1% 0.25W1/4W 100ppm/ C Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 1206; 9.1kΩ; 0.25W; ±1%; -55÷155°C
儒卓力:
**RC1206 9,1K 1% 0,25W TK100 **
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 9.1 KΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.1 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-079K1L Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A9101FKHFT 国巨 | 完全替代 | RC1206FR-079K1L和9C12063A9101FKHFT的区别 |
RC1206FR-079K1 国巨 | 完全替代 | RC1206FR-079K1L和RC1206FR-079K1的区别 |
RC1206JR-079K1L 国巨 | 类似代替 | RC1206FR-079K1L和RC1206JR-079K1L的区别 |
