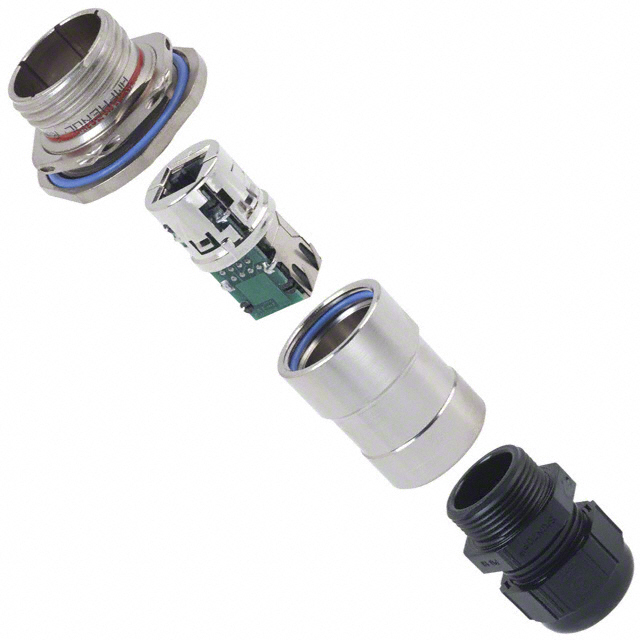

AMPHENOL SOCAPEX RJFTV7PE1N 连接器, 母, RJ45母, 锁紧螺母
The RJF TV series Ethernet Connection System for use with harsh environment. The RJFTV allows to use an Ethernet class D/Cat.5e connection for 10 BaseT, 100 BaseTx or 1000 BaseT networks in harsh environments. With the patented RJStop system you can use a standard RJ45 cordset in a metallic plug which will protect it from shocks, dust and fluids. No hazardous on-field cabling and grounding.
触点数 8
针脚数 8
拔插次数 500
工作温度Max 85 ℃
工作温度Min -40 ℃
高度 36.53 mm
颜色 Olive Drab
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Test & Measurement, Aerospace, Defence, Military, Communications & Networking, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RJFTV7PE1N Amphenol 安费诺 | 当前型号 | 当前型号 |
RJFTV7PEM1G 安费诺 | 完全替代 | RJFTV7PE1N和RJFTV7PEM1G的区别 |
