SMD电阻器/芯片电阻器
SMD器/芯片电阻器
立创商城:
18.2Ω ±1% 250mW
得捷:
RES SMD 18.2 OHM 1% 1/4W 1206
贸泽:
Thick Film Resistors - SMD 18.2 OHM 1%
艾睿:

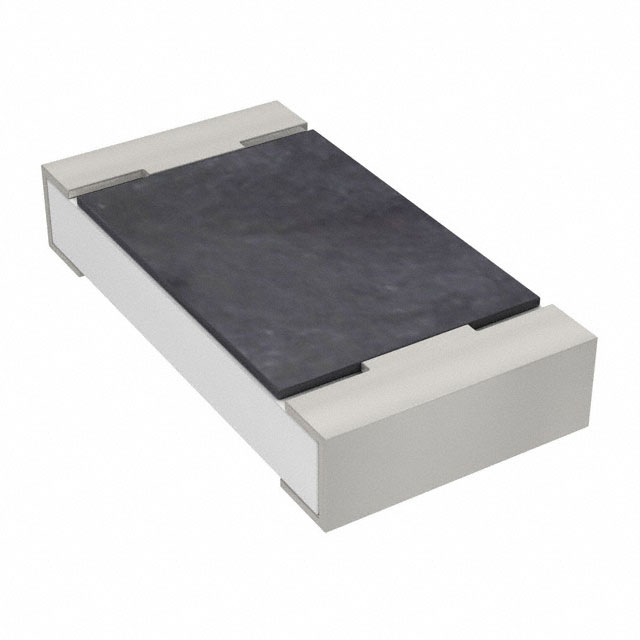

The RC1206FR-0718R2L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This dependable part has a power rating of 0.25 1/4 W. This product has a resistance value of 18.2 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This device is made with thick film technology.
安富利:
General Purpose Chip Resistor Thick Film 1206 18.2Ohm 1% Paper T/R
儒卓力:
**RC1206 18,2R 1% 0,25W **
Win Source:
RES 18.2 OHM 1% 1/4W 1206 / 18.2 Ohms ±1% 0.25W, 1/4W Chip Resistor 1206 3216 Metric Moisture Resistant Thick Film
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 18.2 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-0718R2L Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A18R2FKHFT 国巨 | 完全替代 | RC1206FR-0718R2L和9C12063A18R2FKHFT的区别 |
AR1206FR-0718R2L 国巨 | 功能相似 | RC1206FR-0718R2L和AR1206FR-0718R2L的区别 |
