SMD电阻器/芯片电阻器
SMD器/芯片电阻器
立创商城:
118kΩ ±1% 250mW
得捷:
RES SMD 118K OHM 1% 1/4W 1206
贸泽:
Thick Film Resistors - SMD 118K OHM 1%
艾睿:

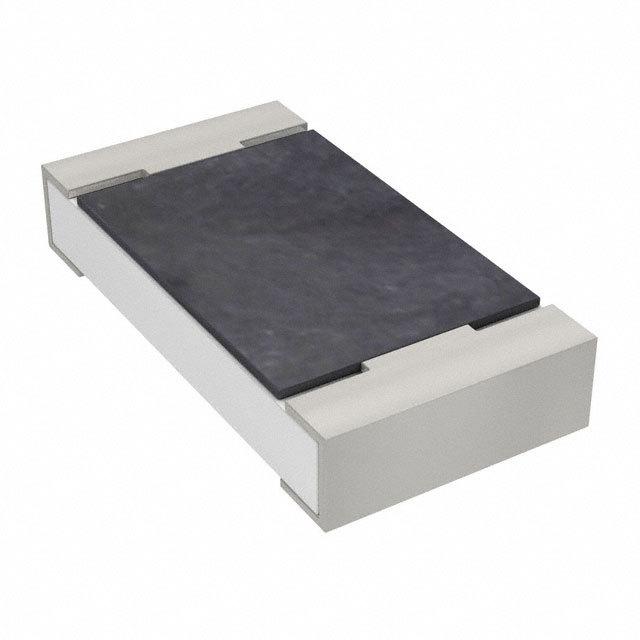

Use this RC1206FR-07118KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 118K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C.
安富利:
Res Thick Film 1206 118K Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Paper T/R
Chip1Stop:
Res Thick Film 1206 118K Ohm 1% 0.25W1/4W ±100ppm/℃ Molded SMD Paper T/R
Verical:
Res Thick Film 1206 118K Ohm 1% 0.25W1/4W ±100ppm/C Pad SMD T/R
儒卓力:
**RC1206 118K 1% 0,25W **
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 118 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-07118KL Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A1183FKHFT 国巨 | 完全替代 | RC1206FR-07118KL和9C12063A1183FKHFT的区别 |
RC1206FR-07118K 国巨 | 完全替代 | RC1206FR-07118KL和RC1206FR-07118K的区别 |
ERJ-8ENF1183V 松下 | 类似代替 | RC1206FR-07118KL和ERJ-8ENF1183V的区别 |
