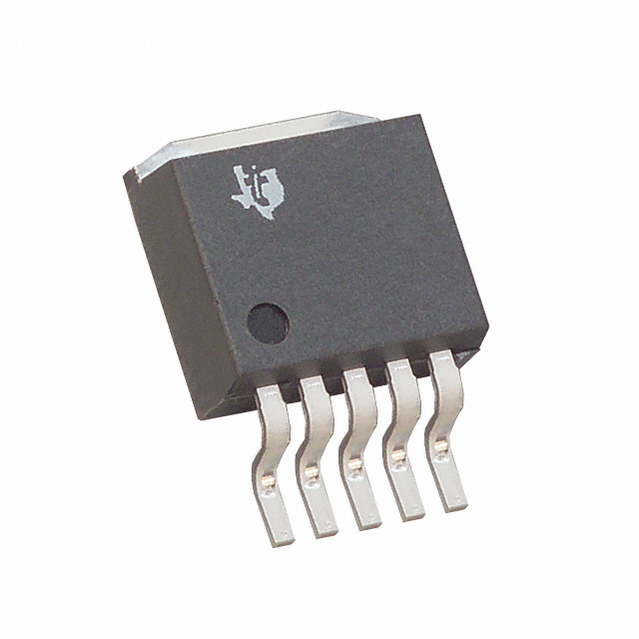

REG104FA-5/500G3

1A低压降稳压器 1A Low-Dropout Regulator

PMIC - 稳压器 - 线性 正 固定 1 输出 1A DDPAK/TO-263-5

得捷:
IC REG LIN 5V 1A DDPAK/TO263-5

艾睿:
Having trouble maintaining a steady voltage? This LDO REG104FA-5/500G3 linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.32@1A|0.003@10mA V. This voltage regulation device&s;s single output can produce a current up to 1 A. By only needing an input voltage of 2.1 V with a maximum of 15 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.5@1A|0.025@10mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C.

Verical:
LDO Regulator Pos 5V 1A 6-Pin5+Tab TO-263 T/R

Newark:
# TEXAS INSTRUMENTS  REG104FA-5/500G3  LDO Voltage Regulator, Fixed, 320 mV drop, 1 A out

德州仪器TI:
1-A, 15-V, low-dropout voltage regulator with enable
