RC1206FR-071M8L

YAGEO PHYCOMP  RC1206FR-071M8L  片式电阻器, 表面贴装, 厚膜, RC系列, 1.8 Mohm, 200 V, 1206 [3216公制], 250 mW, ± 1%

SMD器/芯片电阻器

立创商城:
1.8MΩ ±1% 250mW

得捷:
RES 1.8M OHM 1% 1/4W 1206

e络盟:
SMD片式电阻, 1206 [3216公制], 1.8 Mohm, RC Series, 200 V, 厚膜, 250 mW

艾睿:

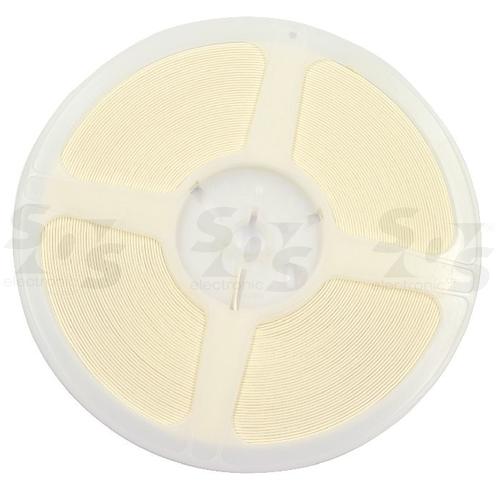

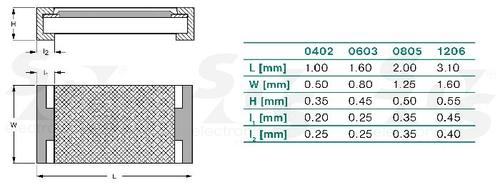

This is a RC1206FR-071M8L fixed single surface-mount resistor from Yageo. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 1.8M Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. This device is made with thick film technology.

Chip1Stop:
Res Thick Film 3.2 x 1.6 mm 1.8M Ohm 1% 0.25W1/4W 100ppm/ C Molded SMD Paper T/R

Verical:
Res Thick Film 1206 1.8M Ohm 1% 0.25W1/4W ±100ppm/°C Epoxy Pad SMD T/R

Newark:
# YAGEO PHYCOMP  RC1206FR-071M8L  Surface Mount Thick Film Resistor, RC Series, 1.8 Mohm, 250 mW, - 1%, 200 V

儒卓力:
**RC1206 1,80M 1% 0,25W **
