500毫安低压差稳压器 500mA Low-Dropout Regulator

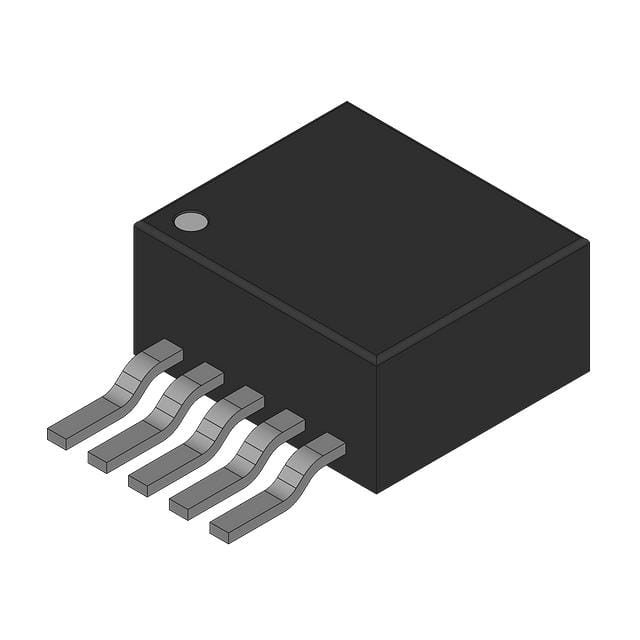

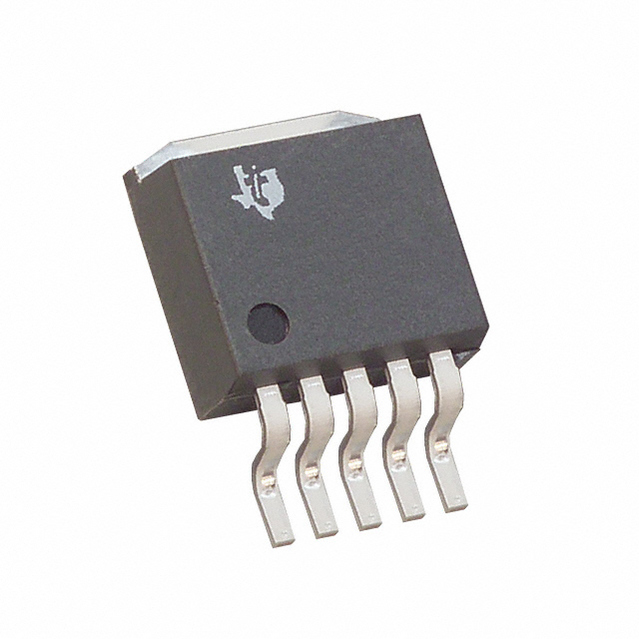

Linear Voltage Regulator IC 1 Output 500mA DDPAK/TO-263-5
立创商城:
REG103FA-A/500
德州仪器TI:
500-mA, 15-V, low-dropout voltage regulator with power good & enable
得捷:
IC REG LINEAR POS ADJ DDPAK
艾睿:
This LDO REG103FA-A/500 linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.003@10mA|0.115@500mA V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.1 V that does not exceed 15 V. With an adjustable output that has a voltage of 1.295 to 5.5 V, this is power management at its best. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -55 °C and a maximum of 125 °C. The maximum dropout voltage is 0.025@10mA|0.2@500mA V.
安富利:
LDO Regulator Pos 1.295V to 5.5V 0.5A 6-Pin5+Tab TO-263 T/R
Chip1Stop:
LDO Regulator Pos 1.295V to 5.5V 0.5A 6-Pin5+Tab TO-263 T/R
Verical:
LDO Regulator Pos 1.295V to 5.5V 0.5A 6-Pin5+Tab TO-263 T/R
输出接口数 1
输入电压DC 15.0V max
输出电压 1.295V ~ 5.5V
输出电流 500 mA
静态电流 1.00 mA
输出电容类型 Ceramic
跌落电压 0.115V @500mA
调节输出数 1
输入电压Max 15 V
输入电压Min 2.1 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±2 %
输入电压 2.1V ~ 15V
安装方式 Surface Mount
引脚数 6
封装 TO-263-6
封装 TO-263-6
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG103FA-A/500 TI 德州仪器 | 当前型号 | 当前型号 |
REG103FA-AKTTT 德州仪器 | 类似代替 | REG103FA-A/500和REG103FA-AKTTT的区别 |
REG103FA-A/500G3 德州仪器 | 类似代替 | REG103FA-A/500和REG103FA-A/500G3的区别 |
