1206 格式 RC1206 系列卷装(0Ω 至 910Ω)适用于拾放机 以卷为单位(5000 件)出售 Power at 70°C | 0.25 W ---|--- Resistance Tolerance | ±1% Temperature Coefficient | ±100ppm/°C Operating Temperature | -55°C to +155°C Max. Operating Voltage | 200V Dimensions LxWxT | 3.10 x 1.60 x 0.55 mm Jumper Chip Resistance | 0.05Ω Jumper Chip Current | 2A 10A Max. ### 厚膜 - 1206
SMD器/芯片电阻器
欧时:

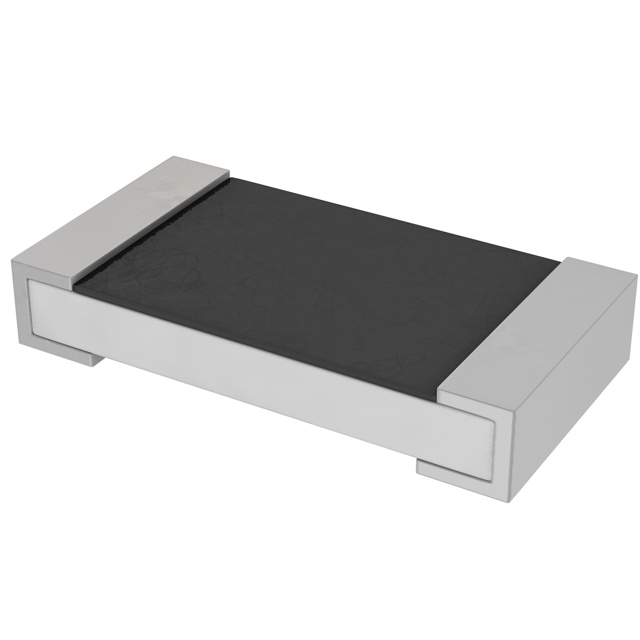

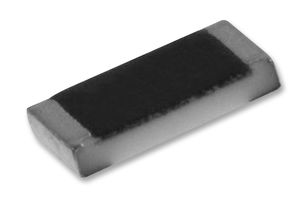

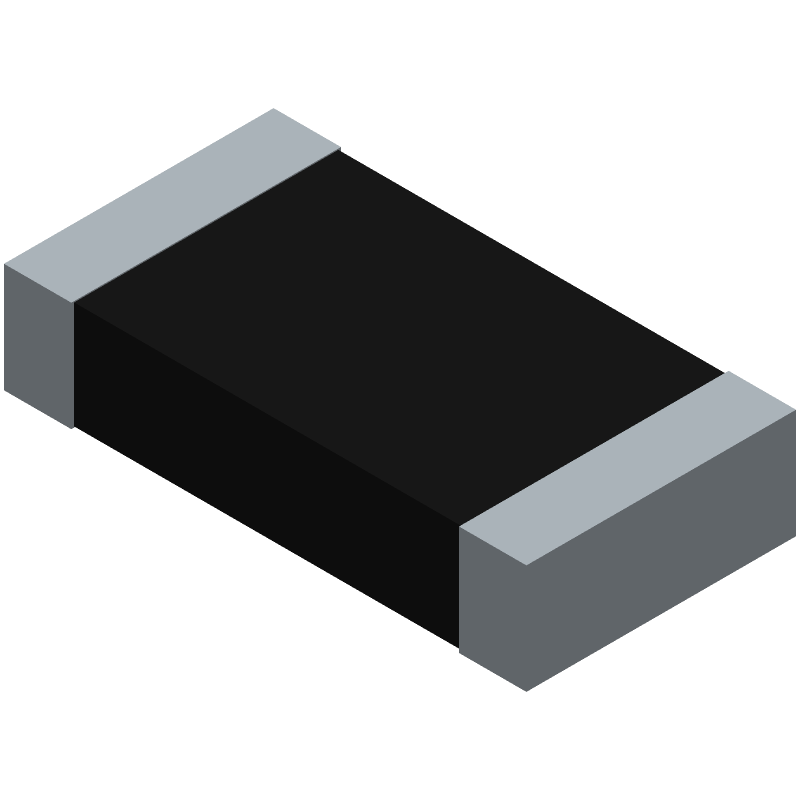

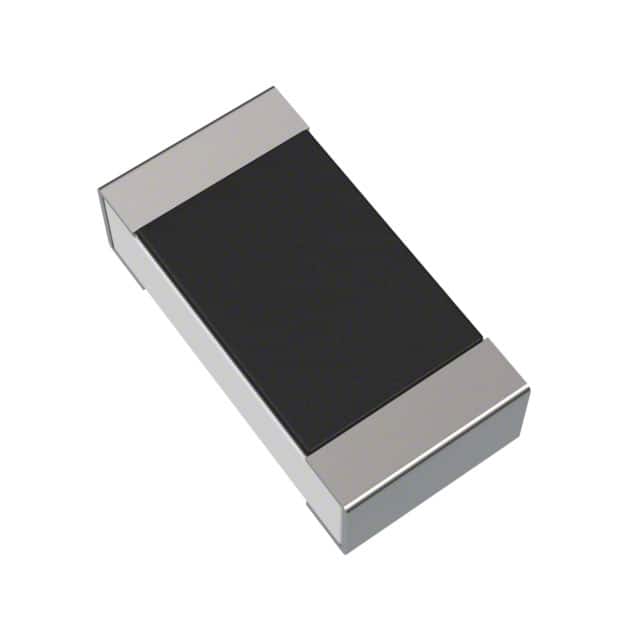

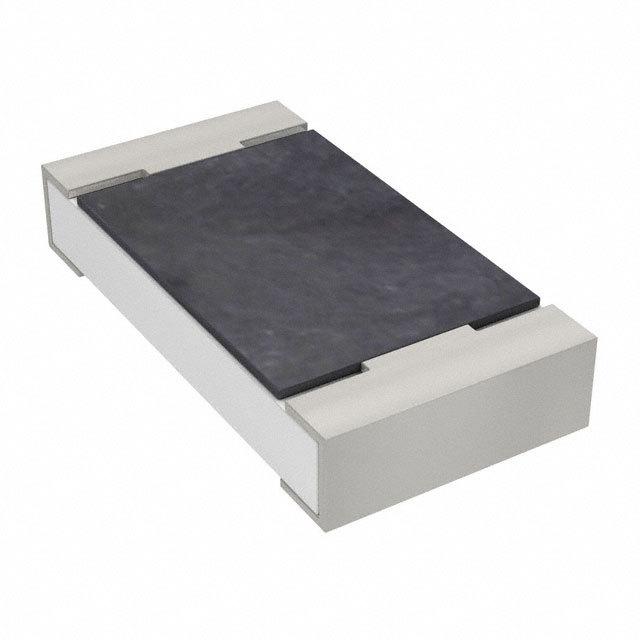

Yageo RC1206 系列 0.25W 3.3Ω 厚膜SMD 电阻器 RC1206FR-073R3L, ±1%, ±200ppm/°C, 1206 封装
得捷:
RES 3.3 OHM 1% 1/4W 1206
立创商城:
3.3Ω ±1% 250mW
e络盟:
SMD片式电阻, 厚膜, 1206 [3216公制], 3.3 ohm, RC系列, 200 V, 厚膜, 250 mW
艾睿:
This is a RC1206FR-073R3L fixed single surface-mount resistor from Yageo. This product has a resistance value of 3.3 Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±200 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with thick film technology. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep.
Chip1Stop:
Res Thick Film 3.2 x 1.6 mm 3.3 Ohm 1% 0.25W1/4W 200ppm/ C Molded SMD Paper T/R
Newark:
# YAGEO PHYCOMP RC1206FR-073R3L Surface Mount Thick Film Resistor, RC Series, 3.3 ohm, 250 mW, - 1%, 200 V, 1206 [3216 Metric]
儒卓力:
**RC1206 3,3R 1% 0,25W TK200 **
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 3.3 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206

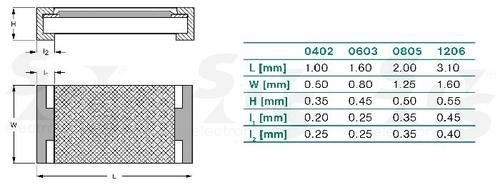

长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active

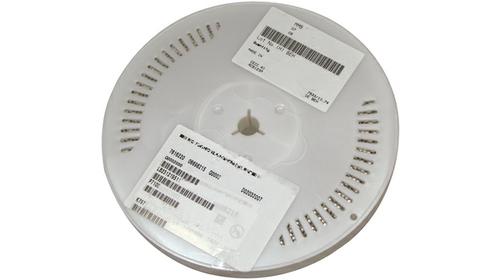

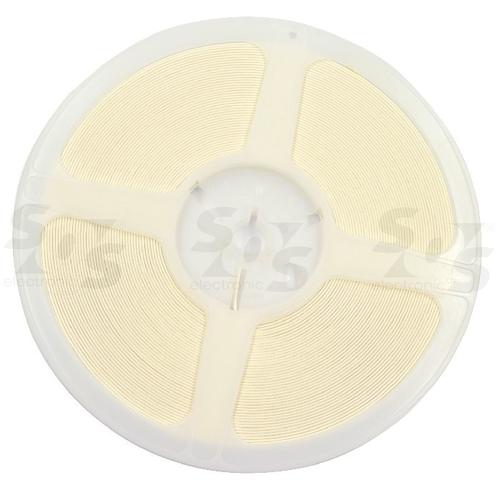

包装方式 Tape & Reel TR
最小包装 5000
制造应用 工业, Industrial, 电源管理, 便携式器材, Consumer Electronics, Power Management, 消费电子产品, Portable Devices
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-073R3L Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A3R30FGHFT 国巨 | 完全替代 | RC1206FR-073R3L和9C12063A3R30FGHFT的区别 |
RC1206FR-073R3 国巨 | 完全替代 | RC1206FR-073R3L和RC1206FR-073R3的区别 |
RC1206JR-073R3L 国巨 | 类似代替 | RC1206FR-073R3L和RC1206JR-073R3L的区别 |
