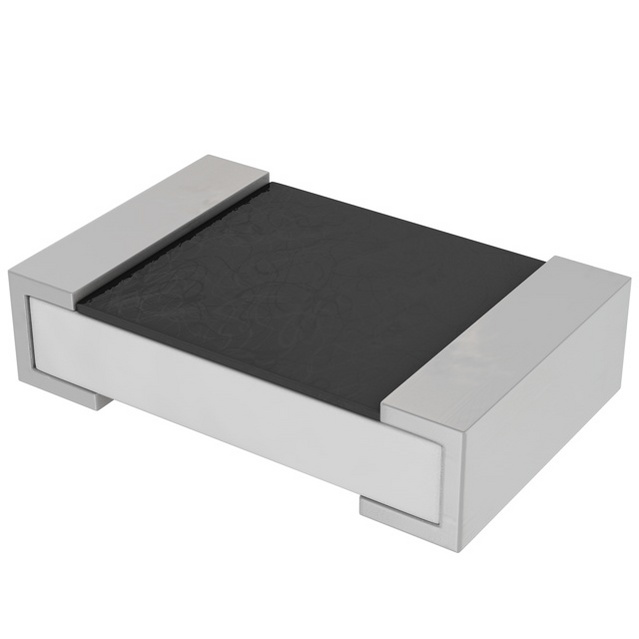

RC 系列 0805 0.125 W 2.2 ohm 1% ±200 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
欧时:
Yageo RC0805 系列 0.125W 2.2Ω 厚膜SMD 电阻器 RC0805FR-072R2L, ±1%, ±200ppm/°C, 0805 封装
得捷:
RES 2.2 OHM 1% 1/8W 0805
立创商城:
2.2Ω ±1% 125mW
e络盟:
SMD片式电阻, 厚膜, 0805 [2012公制], 2.2 ohm, RC系列, 150 V, 厚膜, 125 mW
艾睿:
Use this RC0805FR-072R2L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 2.2 Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±200 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. It has a tolerance of 1%. This device is made with thick film technology.
Chip1Stop:
Res Thick Film 2.0 x 1.2 mm 2.2 Ohm 1% 0.125W1/8W 200ppm/ C Molded SMD Paper T/R
Verical:
Res Thick Film 0805 2.2 Ohm 1% 0.125W1/8W �200ppm/�C Molded SMD Paper T/R
Newark:
# YAGEO PHYCOMP RC0805FR-072R2L Surface Mount Thick Film Resistor, RC Series, 2.2 ohm, 125 mW, - 1%, 150 V, 0805 [2012 Metric]
儒卓力:
**RC0805 2,2R 1% 0,125W TK200 **
Win Source:
RES 2.2 OHM 1% 1/8W 0805 / 2.2 Ohms ±1% 0.125W, 1/8W Chip Resistor 0805 2012 Metric Moisture Resistant Thick Film
额定电压DC 150 V
容差 ±1 %
额定功率 0.125 W
产品系列 RC
电阻 2.2 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 150 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.5 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 Industrial, 电源管理, 工业, Portable Devices, Consumer Electronics, 消费电子产品, 便携式器材, Power Management
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0805FR-072R2L Yageo 国巨 | 当前型号 | 当前型号 |
RC0805FR-072R2 国巨 | 完全替代 | RC0805FR-072R2L和RC0805FR-072R2的区别 |
9C08052A2R20FGHFT 国巨 | 完全替代 | RC0805FR-072R2L和9C08052A2R20FGHFT的区别 |
RC0805JR-072R2L 国巨 | 类似代替 | RC0805FR-072R2L和RC0805JR-072R2L的区别 |
