SMD电阻器/芯片电阻器
SMD器/芯片电阻器
立创商城:
412kΩ ±1% 100mW
得捷:
RES 412K OHM 1% 1/10W 0603
艾睿:

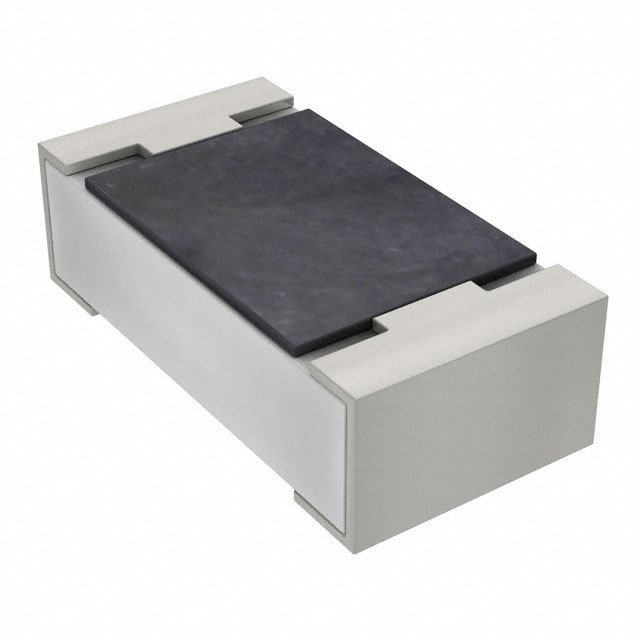

Use this RC0603FR-07412KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 412K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.
Verical:
Res Thick Film 0603 412K Ohm 1% 0.1W1/10W ±100ppm/C Epoxy Pad SMD T/R
儒卓力:
**RC0603 412K 1% 0,1W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.1 W
产品系列 RC
电阻 412 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0603FR-07412KL Yageo 国巨 | 当前型号 | 当前型号 |
9C06031A4123FKHFT 国巨 | 完全替代 | RC0603FR-07412KL和9C06031A4123FKHFT的区别 |
ERJ-3EKF4123V 松下 | 功能相似 | RC0603FR-07412KL和ERJ-3EKF4123V的区别 |
ERJ3EKF4123V 松下 | 功能相似 | RC0603FR-07412KL和ERJ3EKF4123V的区别 |
