0603 格式 RC 系列 7in. 卷装(1MΩ 至 10MΩ)0603 格式表面安装卷装,1% 片式电阻器 Power rating at 70°C | 0.1W ---|--- Resistance tolerance | ± 1% Temp. coefficient | ± 200 ppm/°C 1Ω ≤ R ≤10Ω ± 100 ppm/°C 10Ω Operating temp. Range | -55°C → 155°C Operating voltage | 50V Max Jumper chip maximum resistance | Current rating at 70°C | 1A Dimensions LxWxT | 1.6 x 0.8 x 0.45 mm ### 厚膜 - 0603
SMD器/芯片电阻器
欧时:

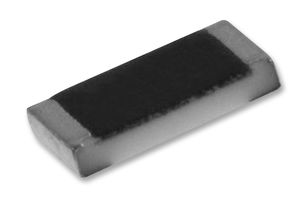

Yageo RC 系列 0.1W 3.3MΩ 厚膜SMD 电阻器 RC0603FR-073M3L, ±1%, ±100ppm/°C, 0603 封装
立创商城:
3.3MΩ ±1% 100mW
得捷:
RES 3.3M OHM 1% 1/10W 0603
贸泽:
Thick Film Resistors - SMD 3.3M OHM 1%
e络盟:
SMD片式电阻, 厚膜, 0603 [1608公制], 3.3 Mohm, RC系列, 75 V, 厚膜, 100 mW
艾睿:
The RC0603FR-073M3L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This dependable part has a power rating of 0.1 1/10 W. This product has a resistance value of 3.3M Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.
Verical:
Res Thick Film 0603 3.3M Ohm 1% 1/10W �100ppm/�C Molded SMD Paper T/R
Newark:
# YAGEO PHYCOMP RC0603FR-073M3L Surface Mount Thick Film Resistor, RC Series, 3.3 Mohm, 100 mW, - 1%, 50 V, 0603 [1608 Metric]
儒卓力:
**RC0603 3,30M 1% 0,1W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.1 W
产品系列 RC
电阻 3.3 MΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 75 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
制造应用 工业, Industrial, 电源管理, 便携式器材, Consumer Electronics, Power Management, 消费电子产品, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0603FR-073M3L Yageo 国巨 | 当前型号 | 当前型号 |
RC0603FR-073M9L 国巨 | 类似代替 | RC0603FR-073M3L和RC0603FR-073M9L的区别 |
WR06W3304FTL 台湾华科 | 功能相似 | RC0603FR-073M3L和WR06W3304FTL的区别 |
CRCW06033M30FKEA 威世 | 功能相似 | RC0603FR-073M3L和CRCW06033M30FKEA的区别 |
