SMD电阻器/芯片电阻器
SMD器/芯片电阻器
得捷:
RES 1.2M OHM 5% 1/8W 0805
立创商城:
1.2MΩ ±5% 125mW
艾睿:

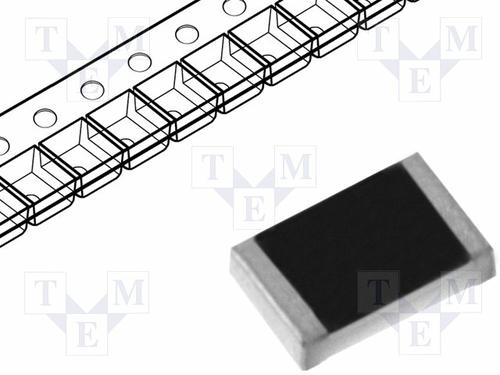

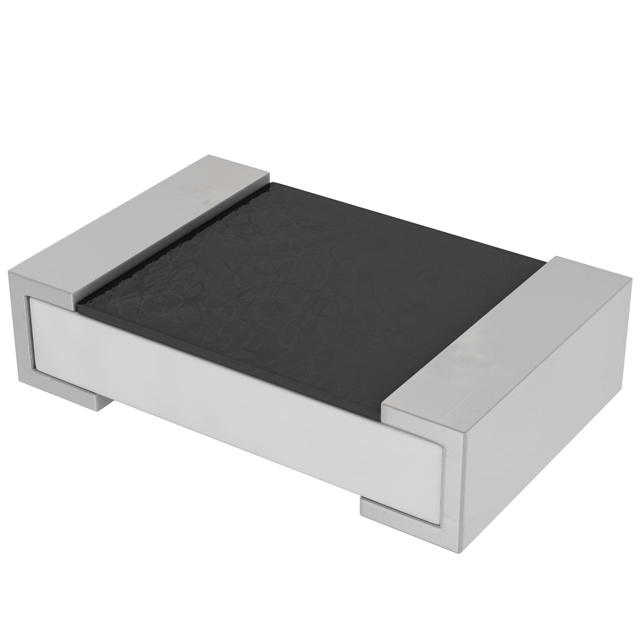

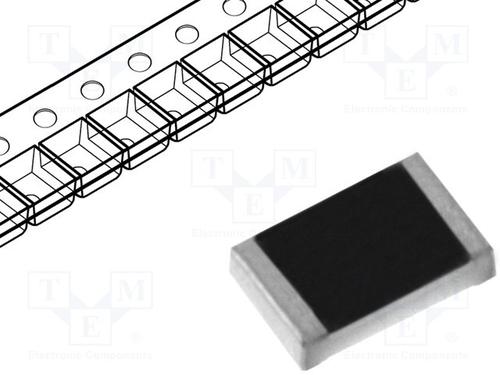

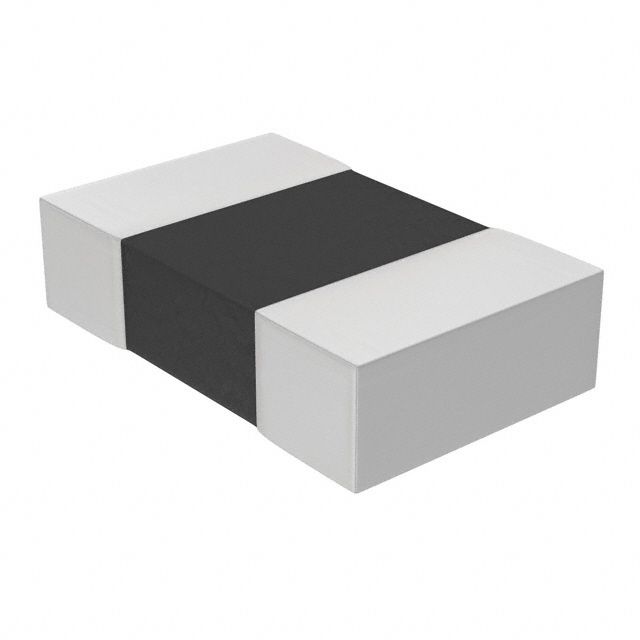

The RC0805JR-071M2L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This dependable part has a power rating of 0.125 1/8 W. This product has a resistance value of 1.2M Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%.
安富利:
Res Thick Film 0805 1.2M Ohm 5% 1/8W ±100ppm/°C Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 0805; 1.2MΩ; 0.125W; ±5%; -55÷155°C
儒卓力:
**RC0805 1,2M 5% 0,125W **
额定电压DC 150 V
容差 ±5 %
额定功率 0.125 W
产品系列 RC
电阻 1.2 MΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.5 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0805JR-071M2L Yageo 国巨 | 当前型号 | 当前型号 |
9C08052A1204JLHFT 国巨 | 完全替代 | RC0805JR-071M2L和9C08052A1204JLHFT的区别 |
RC0805JR-071M2 国巨 | 完全替代 | RC0805JR-071M2L和RC0805JR-071M2的区别 |
RC0805JR-101M2 国巨 | 功能相似 | RC0805JR-071M2L和RC0805JR-101M2的区别 |
