RL1206FR-070R39L

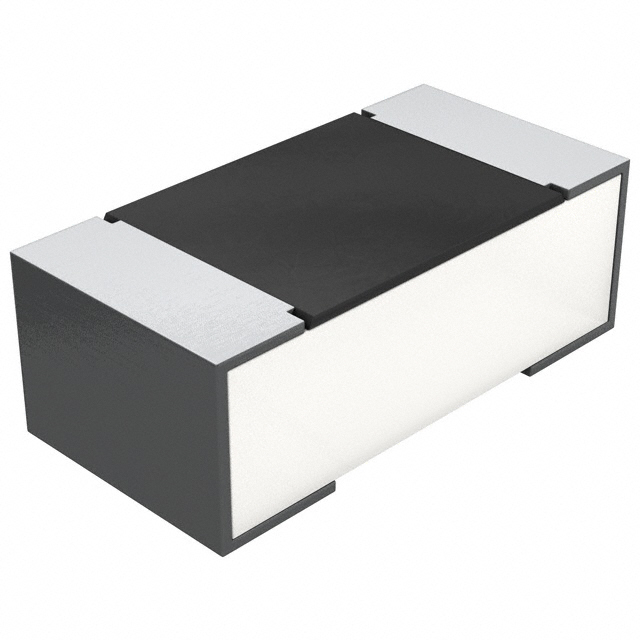

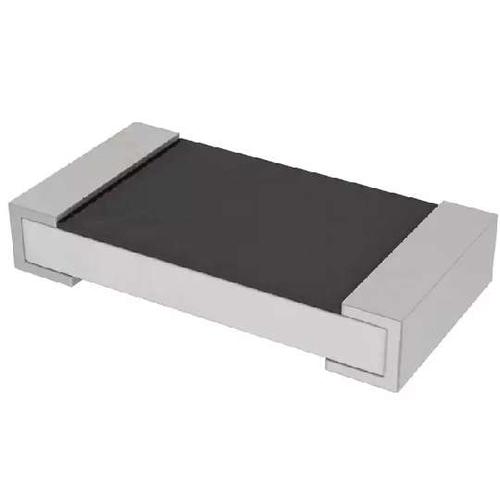

RL1206FR-070R39L图片1
RL1206FR-070R39L图片2
RL1206FR-070R39L图片3
RL1206FR-070R39L图片4
RL1206FR-070R39L图片5
RL1206FR-070R39L图片6
RL1206FR-070R39L图片7
RL1206FR-070R39L图片8
RL1206FR-070R39L图片9
RL1206FR-070R39L概述

YAGEO PHYCOMP  RL1206FR-070R39L  片式电阻器, 表面贴装, 厚膜, RL系列, 0.39 ohm, 1206 [3216公制], 250 mW, ± 1%

SMD器/芯片电阻器


得捷:
RES 0.39 OHM 1% 1/4W 1206


立创商城:
390mΩ ±1% 250mW


e络盟:
SMD片式电阻, 厚膜, 1206 [3216公制], 0.39 ohm, RL系列, 厚膜, 250 mW


艾睿:
This is a RL1206FR-070R39L fixed single surface-mount resistor from Yageo. This product has a resistance value of 390m Ohm. This part has a power rating of 0.25 1/4 W. It is also complete with current sensing technology. Its temperature coefficient is ±300 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep.


Verical:
Res Thick Film 1206 0.39 Ohm 1% 0.25W1/4W ±300ppm/C Epoxy SMD Automotive T/R


Newark:
# YAGEO PHYCOMP  RL1206FR-070R39L  Surface Mount Chip Resistor, Thick Film, RL Series, 0.39 ohm, 250 mW, 1%, 1206 [3216 Metric]


儒卓力:
**RC1206 0,39R 1% 0,25W TK300 **


RL1206FR-070R39L中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.25 W

产品系列 RL

电阻 0.39 Ω

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.1 mm

宽度 1.6 mm

高度 0.55 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±300 ppm/℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2016/06/20

海关信息

ECCN代码 EAR99

数据手册

RL1206FR-070R39L引脚图与封装图

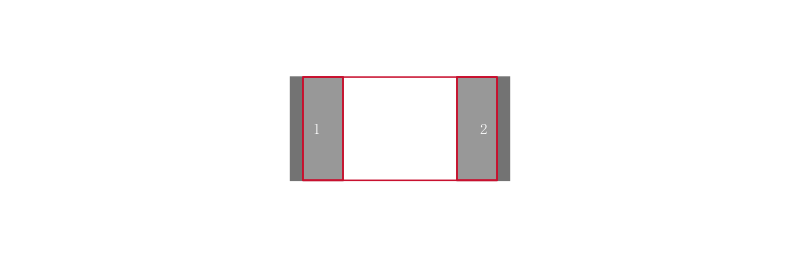

RL1206FR-070R39L引脚图

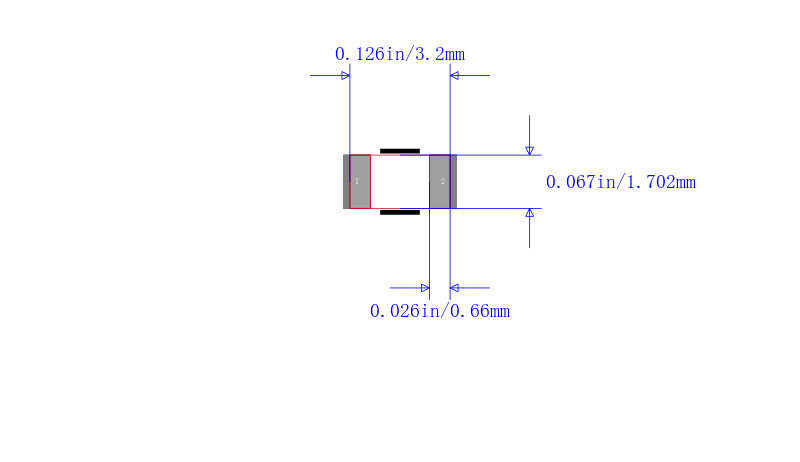

RL1206FR-070R39L封装图
RL1206FR-070R39L封装焊盘图
在线购买RL1206FR-070R39L
型号: RL1206FR-070R39L
制造商: Yageo 国巨
描述:YAGEO PHYCOMP  RL1206FR-070R39L  片式电阻器, 表面贴装, 厚膜, RL系列, 0.39 ohm, 1206 [3216公制], 250 mW, ± 1%
替代型号RL1206FR-070R39L
型号/品牌 代替类型 替代型号对比

RL1206FR-070R39L

Yageo 国巨

当前型号

当前型号

CRL1206-FW-R390ELF

伯恩斯

功能相似

RL1206FR-070R39L和CRL1206-FW-R390ELF的区别
