RMCF0603FT121R

RMCF0603FT121R图片1
RMCF0603FT121R图片2
RMCF0603FT121R图片3
RMCF0603FT121R图片4
RMCF0603FT121R概述

0603 121Ω ±1% 0.1W1/10W ±100ppm/℃

121 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 1608 Metric Automotive AEC-Q200 Thick Film


得捷:
RES 121 OHM 1% 1/10W 0603


艾睿:
The RMCF0603FT121R fixed single surface-mount resistor from SEI Stackpole Electronics makes it easy to add resistors to your circuit board. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 121 Ohm. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. This product is 1.55 mm long, 0.45 mm tall and 0.8 mm deep. It has a tolerance of 1%.


Verical:
Res Thick Film 0603 121 Ohm 1% 0.1W1/10W ±100ppm/C Pad SMD Automotive T/R


RMCF0603FT121R中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.1 W

产品系列 RMCP/RMCF

电阻 121 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RMCF0603FT121R引脚图与封装图
RMCF0603FT121R引脚图

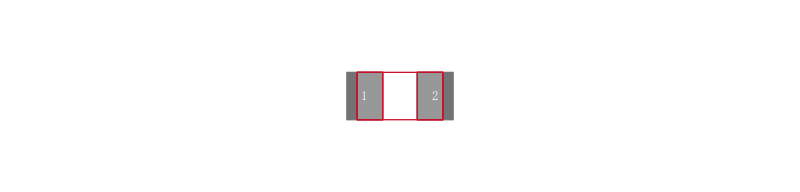

RMCF0603FT121R封装图

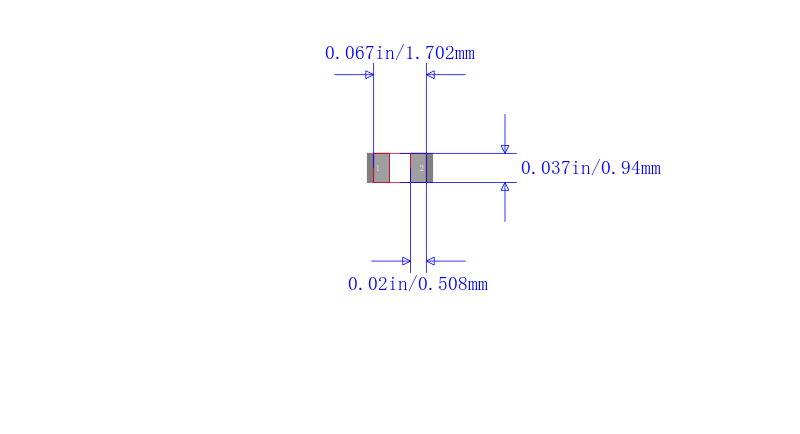

RMCF0603FT121R封装焊盘图
在线购买RMCF0603FT121R
型号: RMCF0603FT121R
制造商: Stackpole Electronics
描述:0603 121Ω ±1% 0.1W1/10W ±100ppm/℃
替代型号RMCF0603FT121R
型号/品牌 代替类型 替代型号对比

RMCF0603FT121R

Stackpole Electronics

当前型号

当前型号

RMCF0603FG121R

Stackpole Electronics

完全替代

RMCF0603FT121R和RMCF0603FG121R的区别

ERJ-3EKF1210V

松下

类似代替

RMCF0603FT121R和ERJ-3EKF1210V的区别

RC0603FR-07121R

国巨

类似代替

RMCF0603FT121R和RC0603FR-07121R的区别
