RMCF0603FT20R0

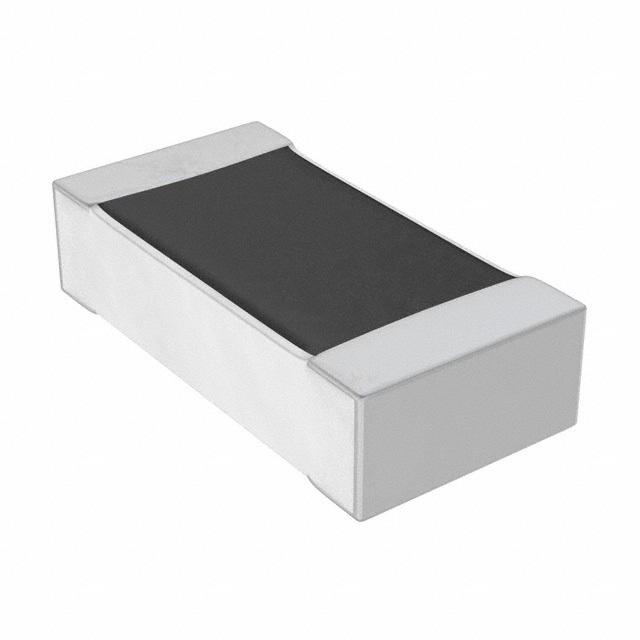

RMCF0603FT20R0图片1
RMCF0603FT20R0图片2
RMCF0603FT20R0图片3
RMCF0603FT20R0图片4
RMCF0603FT20R0图片5
RMCF0603FT20R0概述

0603 20Ω ±1% 0.1W1/10W ±100ppm/℃

20 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 1608 Metric Automotive AEC-Q200 Thick Film


得捷:
RES 20 OHM 1% 1/10W 0603


艾睿:
The RMCF0603FT20R0 fixed single surface-mount resistor from SEI Stackpole Electronics makes it easy to add resistors to your circuit board. This product has a resistance value of 20 Ohm. This durable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.55 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. It has a tolerance of 1%.


Verical:
Res Thick Film 0603 20 Ohm 1% 0.1W1/10W ±100ppm/C Pad SMD Automotive T/R


RMCF0603FT20R0中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.1 W

产品系列 RMCP/RMCF

电阻 20 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.45 mm

封装公制 1608

封装 0603

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RMCF0603FT20R0引脚图与封装图
RMCF0603FT20R0引脚图
RMCF0603FT20R0封装图
RMCF0603FT20R0封装焊盘图
在线购买RMCF0603FT20R0
型号: RMCF0603FT20R0
制造商: Stackpole Electronics
描述:0603 20Ω ±1% 0.1W1/10W ±100ppm/℃
替代型号RMCF0603FT20R0
型号/品牌 代替类型 替代型号对比

RMCF0603FT20R0

Stackpole Electronics

当前型号

当前型号

ERJ3EKF20R0V

松下

功能相似

RMCF0603FT20R0和ERJ3EKF20R0V的区别

CRCW060320R0F100RT5

Vishay Intertechnology

功能相似

RMCF0603FT20R0和CRCW060320R0F100RT5的区别
