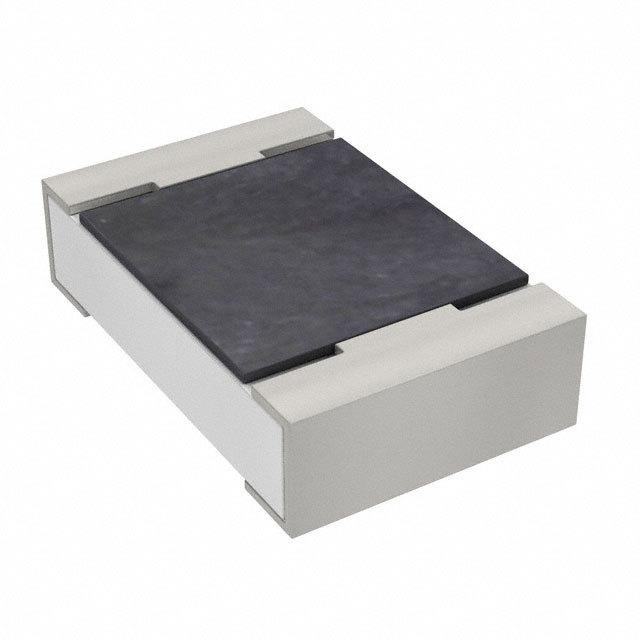

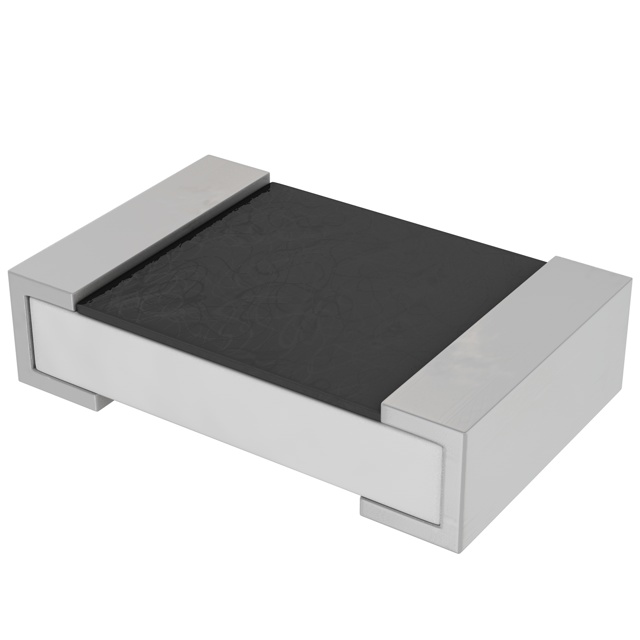

RL0805FR-7W0R5L图片1
RL0805FR-7W0R5L图片2
RL0805FR-7W0R5L图片3
RL0805FR-7W0R5L图片4
RL0805FR-7W0R5L图片5
RL0805FR-7W0R5L图片6
RL0805FR-7W0R5L图片7
RL0805FR-7W0R5L图片8
RL0805FR-7W0R5L概述

SMD电阻器/芯片电阻器

SMD器/芯片电阻器


立创商城:
500mΩ ±1% 250mW


得捷:
RES 0.5 OHM 1% 1/4W 0805


艾睿:
This is a RL0805FR-7W0R5L fixed single surface-mount resistor from Yageo. This product has a resistance value of 500m Ohm. This dependable part has a power rating of 0.25 1/4 W. It is also complete with current sensing technology. Its temperature coefficient is ±300 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 1%. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep.


安富利:
Res Thick Film 0805 500m Ohm 1% 1/4W ±300ppm/°C Molded SMD Paper T/R


Verical:
Res Thick Film 0805 0.5 Ohm 1% 0.25W1/4W ±200ppm/C Pad SMD Automotive T/R


儒卓力:
**RC0805 0,50R 1% 0,25W TK300 **


RL0805FR-7W0R5L中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.25 W

产品系列 RL

电阻 500 mΩ

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.2 mm

高度 0.5 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±300 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

RL0805FR-7W0R5L引脚图与封装图

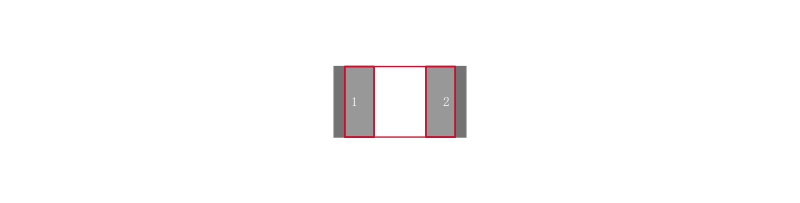

RL0805FR-7W0R5L引脚图
RL0805FR-7W0R5L封装图
RL0805FR-7W0R5L封装焊盘图
在线购买RL0805FR-7W0R5L
型号: RL0805FR-7W0R5L
制造商: Yageo 国巨
描述:SMD电阻器/芯片电阻器
