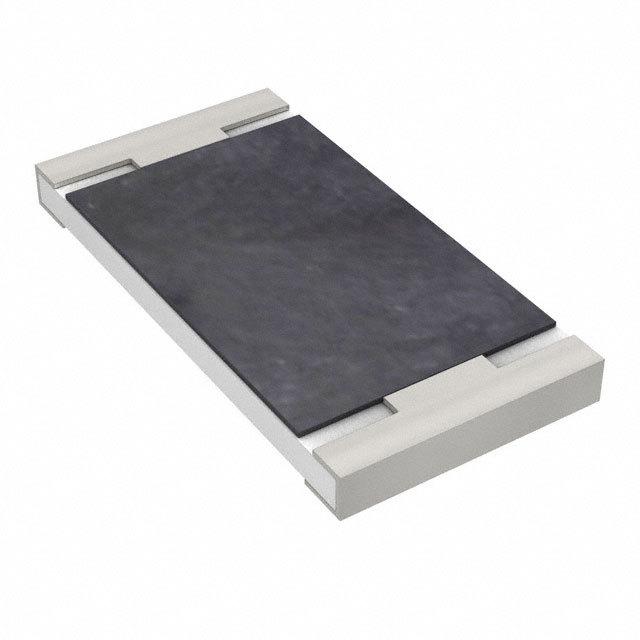

YAGEO PHYCOMP RL2512FK-070R22L 片式电阻器, 表面贴装, 厚膜, RL系列, 0.22 ohm, 2512 [6432公制], 1 W, ± 1%
SMD器/芯片电阻器
得捷:
RES 0.22 OHM 1% 1W 2512
欧时:
Resistor chip low ohmic 2512 1% 1W 0R22
立创商城:
220mΩ ±1% 1W
艾睿:
Use this RL2512FK-070R22L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This part has a power rating of 1 W. This product has a resistance value of 220m Ohm. It is also complete with current sensing technology. Its temperature coefficient is ±600 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with thick film technology. It has a tolerance of 1%. This product is 6.35 mm long, 0.55 mm tall and 3.2 mm deep. This part has an operating temperature of -55 to 155 °C.
Verical:
Res Thick Film 2512 0.22 Ohm 1% 1W ±600ppm/C Epoxy SMD Automotive T/R
Newark:
# YAGEO PHYCOMP RL2512FK-070R22L Surface Mount Chip Resistor, Thick Film, RL Series, 0.22 ohm, 1 W, 1%, 2512 [6432 Metric]
儒卓力:
**RC2512 0,22R 1% 1W **
Win Source:
RES 0.22 OHM 1% 1W 2512 / 220 mOhms ±1% 1W Chip Resistor 2512 6432 Metric Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
容差 ±1 %
额定功率 1 W
产品系列 RL
电阻 0.22 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 6432
封装 2512
长度 6.35 mm
宽度 3.2 mm
高度 0.55 mm
封装公制 6432
封装 2512
工作温度 -55℃ ~ 155℃
温度系数 ±600 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RL2512FK-070R22L Yageo 国巨 | 当前型号 | 当前型号 |
RL2512JK-070R22L 国巨 | 类似代替 | RL2512FK-070R22L和RL2512JK-070R22L的区别 |
PT2512FK-070R22L 国巨 | 类似代替 | RL2512FK-070R22L和PT2512FK-070R22L的区别 |
MCWW25XR220FTL Multicomp | 类似代替 | RL2512FK-070R22L和MCWW25XR220FTL的区别 |
