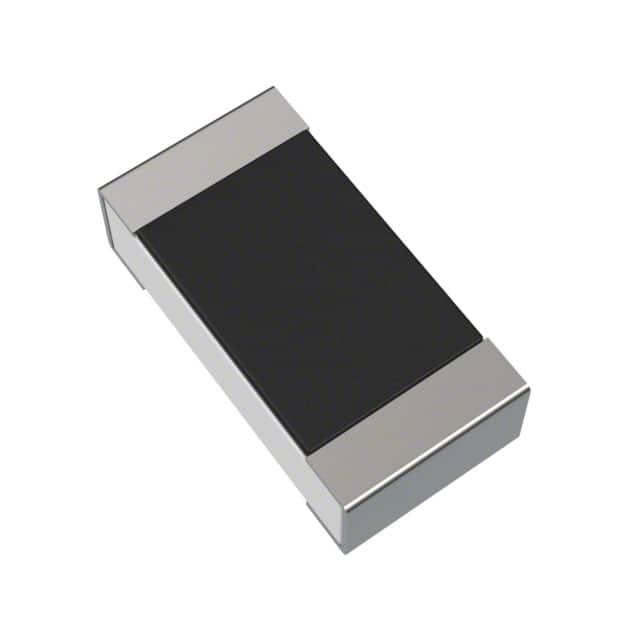

RC 系列 1206 0.25 W 2.37 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 2.37K OHM 1% 1/4W 1206
立创商城:
2.37kΩ ±1% 250mW
贸泽:
Thick Film Resistors - SMD 2.37K OHM 1%
艾睿:
Use this RC1206FR-072K37L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 2.37K Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. This product is 3.1 mm long, 0.55 mm tall and 1.6 mm deep. It has a tolerance of 1%.
Chip1Stop:
Res Thick Film 1206 2.37K Ohm 1% 0.25W1/4W ±100ppm/℃ Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 1206; 2.37kΩ; 0.25W; ±1%; -55÷155°C
Verical:
Res Thick Film 1206 2.37K Ohm 1% 0.25W1/4W ±100ppm/C Epoxy Pad SMD T/R
儒卓力:
**RC1206 2,37K 1% 0,25W **
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
产品系列 RC
电阻 2.37 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 200 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.55 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1206FR-072K37L Yageo 国巨 | 当前型号 | 当前型号 |
9C12063A2371FKHFT 国巨 | 完全替代 | RC1206FR-072K37L和9C12063A2371FKHFT的区别 |
ERJ-8ENF2371V 松下 | 类似代替 | RC1206FR-072K37L和ERJ-8ENF2371V的区别 |
CRCW12062K37FKEA 威世 | 功能相似 | RC1206FR-072K37L和CRCW12062K37FKEA的区别 |
