RMCF0402FT383K

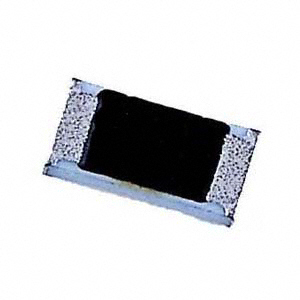

RMCF0402FT383K图片1
RMCF0402FT383K图片2
RMCF0402FT383K图片3
RMCF0402FT383K图片4
RMCF0402FT383K图片5
RMCF0402FT383K概述

0402 383kΩ ±1% 0.063W1/16W ±100ppm/℃

383 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 1005 Metric Automotive AEC-Q200 Thick Film


得捷:
RES 383K OHM 1% 1/16W 0402


艾睿:
The RMCF0402FT383K fixed single surface-mount resistor from SEI Stackpole Electronics makes it easy to add resistors to your circuit board. This product has a resistance value of 383K Ohm. This part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 1%. This product is 1 mm long, 0.3 mm tall and 0.5 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C.


Verical:
Res Thick Film 0402 383K Ohm 1% 0.063W1/16W ±100ppm/C Pad SMD Automotive T/R


RMCF0402FT383K中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.063 W

产品系列 RMCP/RMCF

电阻 383 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.3 mm

封装公制 1005

封装 0402

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 10000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

RMCF0402FT383K引脚图与封装图
RMCF0402FT383K引脚图

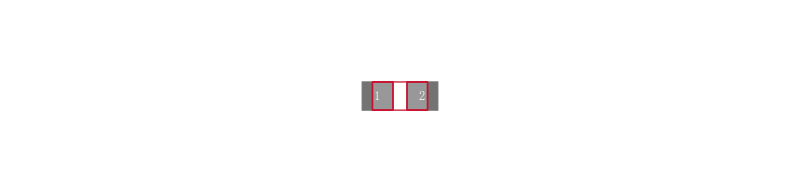

RMCF0402FT383K封装图

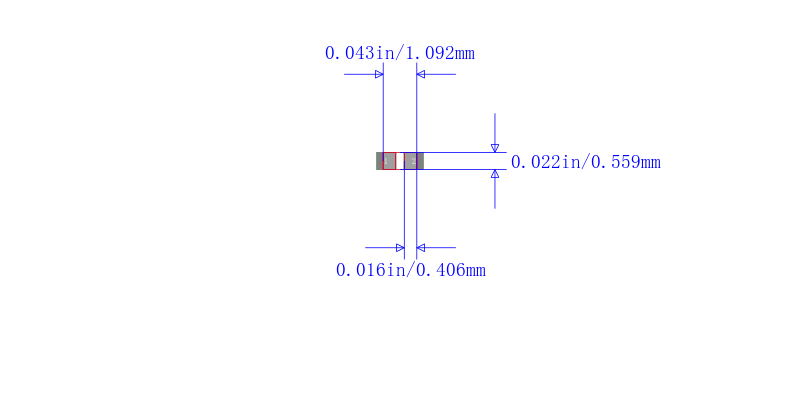

RMCF0402FT383K封装焊盘图
在线购买RMCF0402FT383K
型号: RMCF0402FT383K
制造商: Stackpole Electronics
描述:0402 383kΩ ±1% 0.063W1/16W ±100ppm/℃
