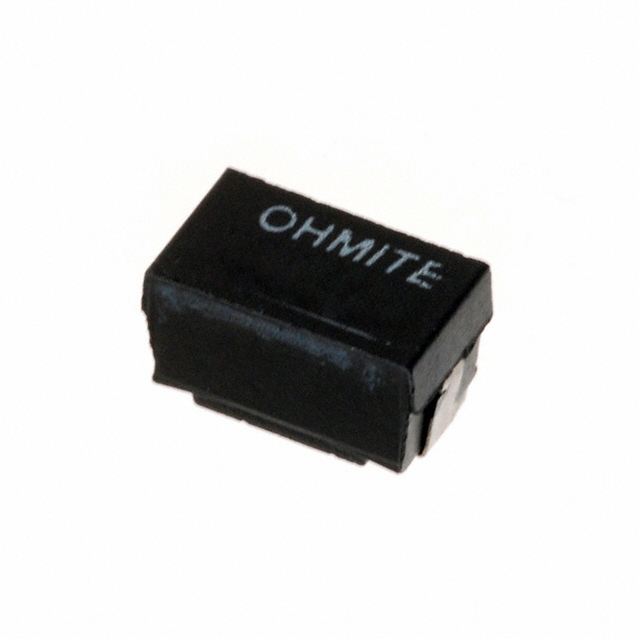

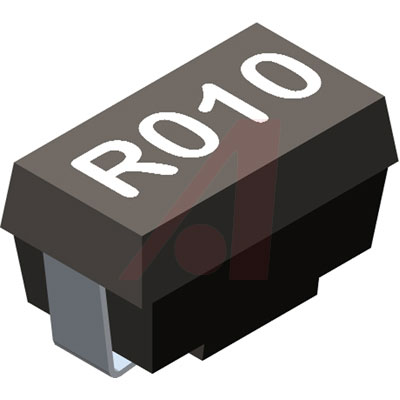

RW2S0CBR020JE

RW2S0CBR020JE图片1
RW2S0CBR020JE图片2
RW2S0CBR020JE图片3
RW2S0CBR020JE图片4
RW2S0CBR020JE图片5
RW2S0CBR020JE图片6
RW2S0CBR020JE概述

0.02Ω ±5% 2W

Res Wirewound 0.02 Ohm 5% 2W J-Lead SMD


得捷:
RES SMD 20M OHM 5% 2W J LEAD


贸泽:
Wirewound Resistors - SMD 2watt .02ohm 5%


Allied Electronics:
RES SMD 0.02 OHM 5% 2W J LEAD


Chip1Stop:
Res Wirewound 0.02 Ohm 5% 2W Molded J-Lead SMD


立创商城:
RW2S0CBR020JE


MASTER:
Res Wirewound 0.02 Ohm 5% 2W J-Lead SMD


Online Components:
Res Wirewound 0.02 Ohm 5% 2W J-Lead SMD


Electro Sonic:
Res Wirewound 0.02 Ohm 5% 2W J-Lead SMD


RW2S0CBR020JE中文资料参数规格
技术参数

额定电压DC 100 V

额定功率 2 W

产品系列 RW

电阻 20 mΩ

阻值偏差 ±5 %

额定电压 100 V

封装参数

安装方式 Surface Mount

封装 4023

外形尺寸

长度 10.34 mm

宽度 5.74 mm

高度 5.64 mm

封装 4023

物理参数

工作温度 -55℃ ~ 150℃

温度系数 ±90 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

RW2S0CBR020JE引脚图与封装图
RW2S0CBR020JE引脚图

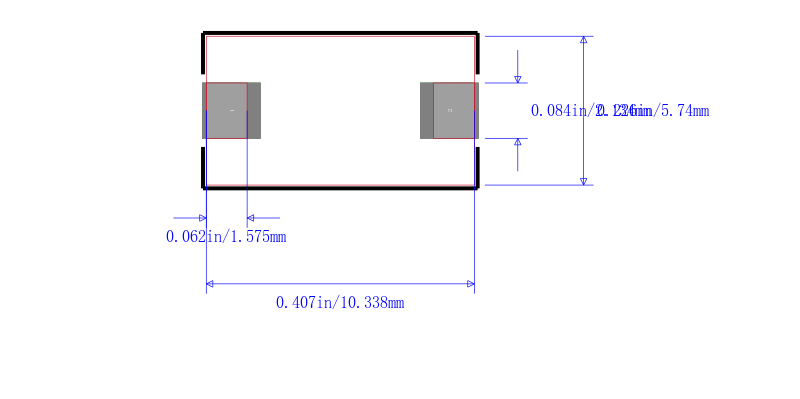

RW2S0CBR020JE封装图

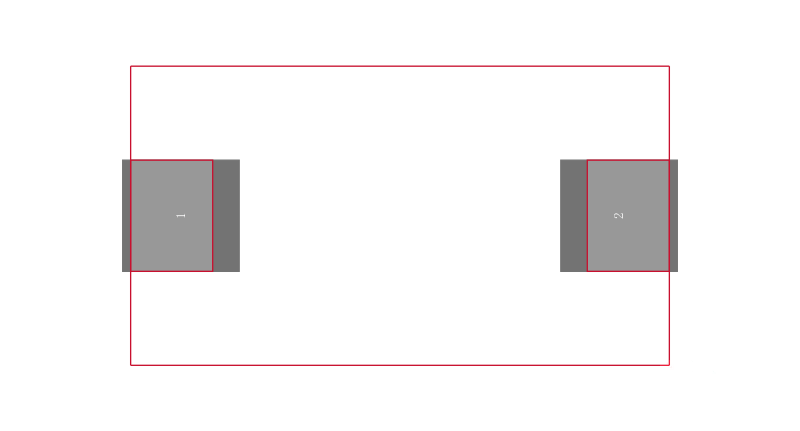

RW2S0CBR020JE封装焊盘图
在线购买RW2S0CBR020JE
型号: RW2S0CBR020JE
制造商: Ohmite
描述:0.02Ω ±5% 2W
