RAVF164DJT1K00

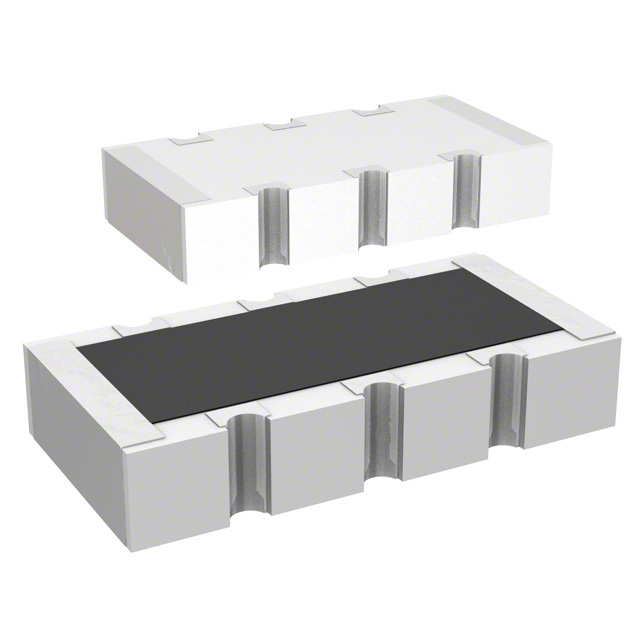

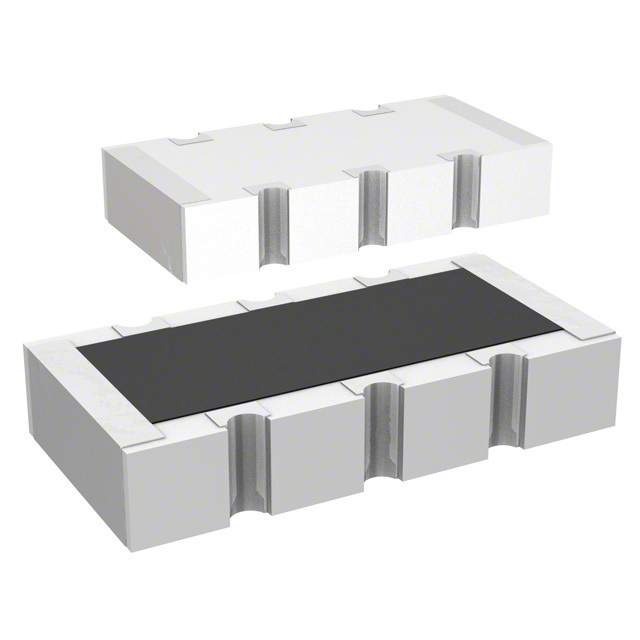

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.25W1/4W, 1000Ω, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT

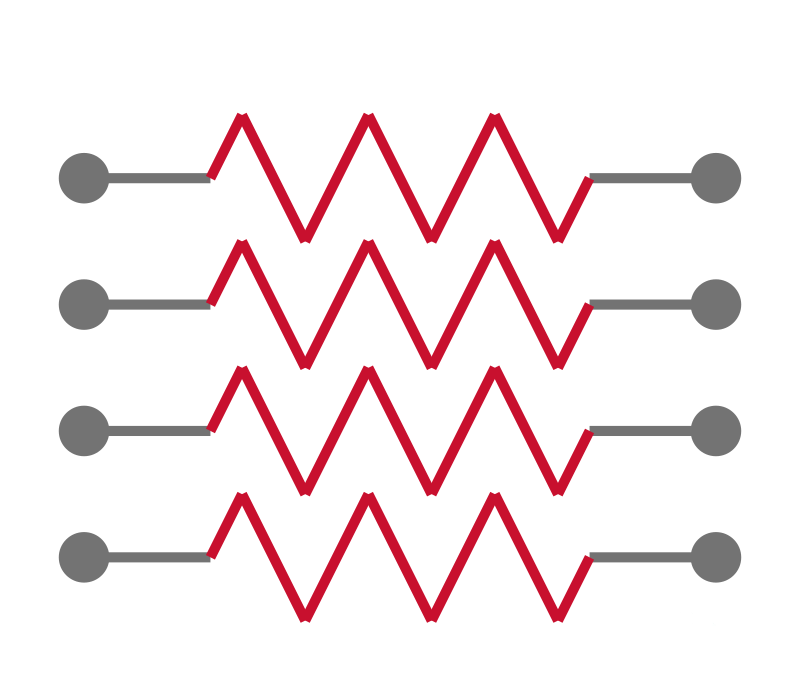

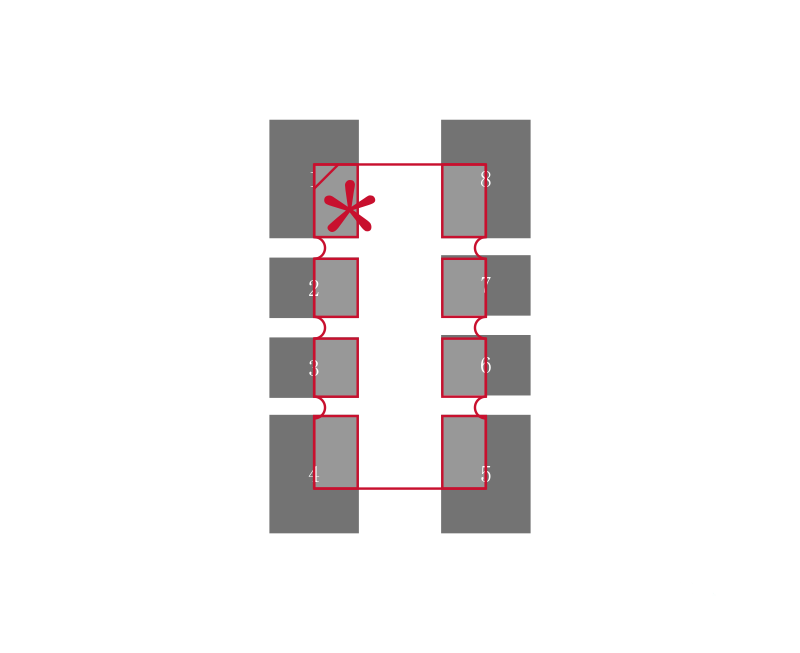

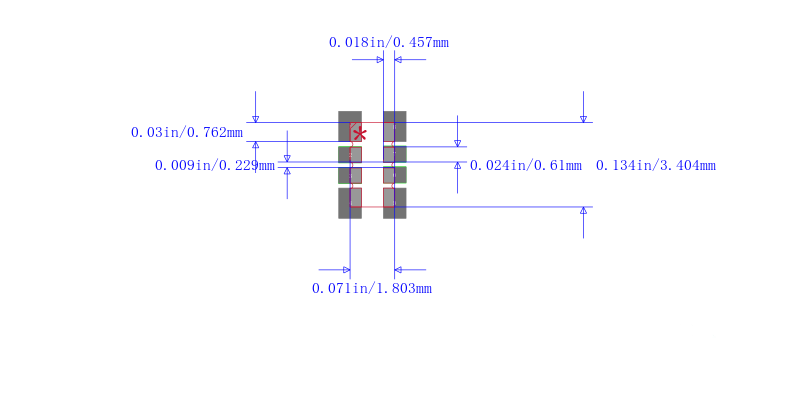

Use this resistor array from SEI to conserve space by packing multiple resistors into one IC chip. This product"s 4 resistors have a value of 1K Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product"s terminal pitch is 0.8 mm. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. The RAVF164DJT1K00 part has a convex termination style. It has a tolerance of 5%.
