薄膜电阻器
薄膜器
得捷:
RES SMD 10K OHM 1% 1/16W 0402
立创商城:
10kΩ ±1% 62.5mW
艾睿:
Use this RT0402FRE0710KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 10K Ohm. This durable part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±50 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 1 mm long, 0.3 mm tall and 0.5 mm deep. This device utilizes thin film technology.
Verical:
Res Thin Film 0402 10K Ohm 1% 0.063W1/16W ±50ppm/C Epoxy Pad SMD T/R
儒卓力:
**RT0402 10K 1% 0,0625W TK50 **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RT
电阻 10 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 1005
封装 0402

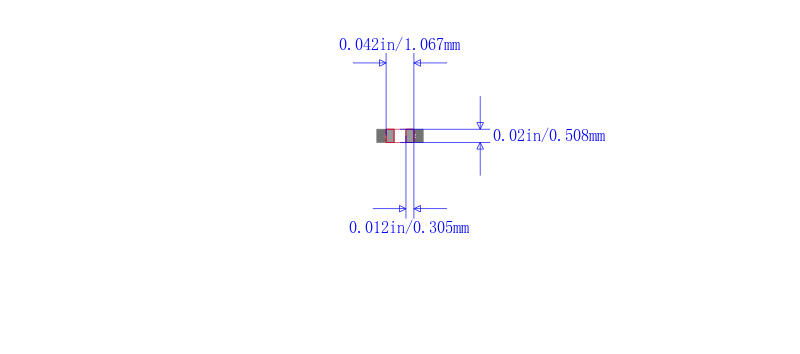

长度 1 mm
宽度 0.5 mm
高度 0.3 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±50 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RT0402FRE0710KL Yageo 国巨 | 当前型号 | 当前型号 |
9T04021A1002FBHF3 国巨 | 完全替代 | RT0402FRE0710KL和9T04021A1002FBHF3的区别 |
RT0402BRD0710KL 国巨 | 类似代替 | RT0402FRE0710KL和RT0402BRD0710KL的区别 |
RT0402BRE0710KL 国巨 | 类似代替 | RT0402FRE0710KL和RT0402BRE0710KL的区别 |
