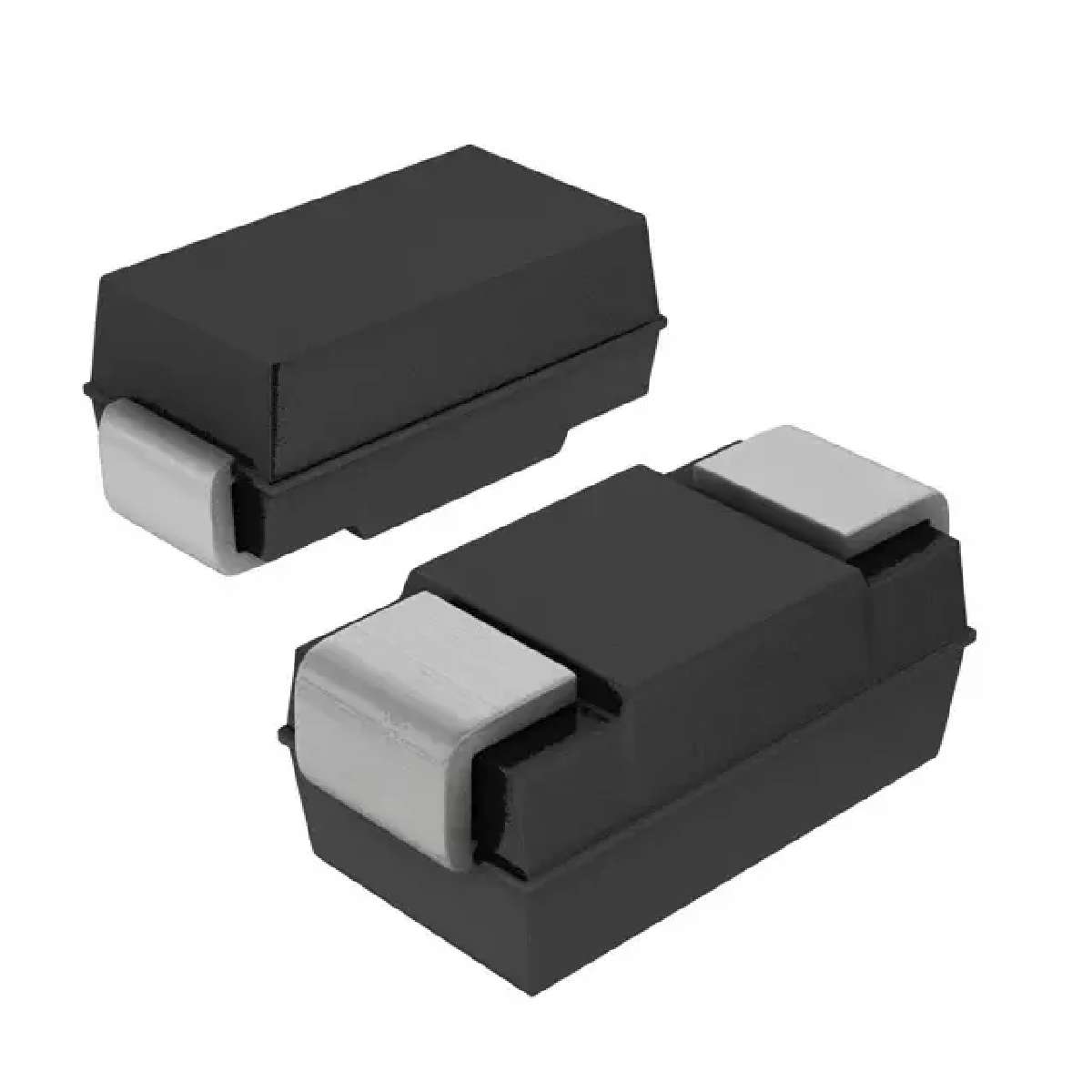

ROHM RB160L-60TE25 小信号肖特基二极管, 单, 60 V, 1 A, 580 mV, 30 A, 125 °C
The is a surface mount silicon epitaxial planer Schottky Barrier Diode features small power mould type PMDS and high reliability. It is suitable for general rectification, PC, mobile phone and various portable electronics. It can also be used in air-conditioner, AC Servo, blood pressure monitor, stepper motor and brushed DC motor control, PPC plain paper copier, MFPmulti function printer, ultrasound system for portable, surveillance camera for network, machine vision camera for industrial, IH cooking heater and solar power inverters.
- .
- Low forward voltage
- .
- Low reverse current
- .
- High ESD resistant
- .
- 150°C Junction temperature
额定电压DC 60.0 V
额定电流 1.00 A
输出电流 ≤1.00 A
针脚数 2
正向电压 580mV @1A
极性 Standard
正向电流 1 A
最大正向浪涌电流（Ifsm） 30 A
正向电压Max 580 mV
正向电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
工作结温 150℃ Max
工作结温Max 125 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-106
高度 1.9 mm
封装 SOD-106
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 嵌入式设计与开发, 医用, 车用, Medical, 电机驱动与控制, 便携式器材, Embedded Design & Development, Automotive, Consumer Electronics, Motor Drive & Control, Portable Devices, , Portable Devices, 计算机和计算机周边, Computers & Computer Peripherals, Motor Drive & Control, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RB160L-60TE25 ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
MBRA160T3G 安森美 | 功能相似 | RB160L-60TE25和MBRA160T3G的区别 |
DAN217UT106 罗姆半导体 | 功能相似 | RB160L-60TE25和DAN217UT106的区别 |
STPS130A 意法半导体 | 功能相似 | RB160L-60TE25和STPS130A的区别 |
