RAVF164DJT470R

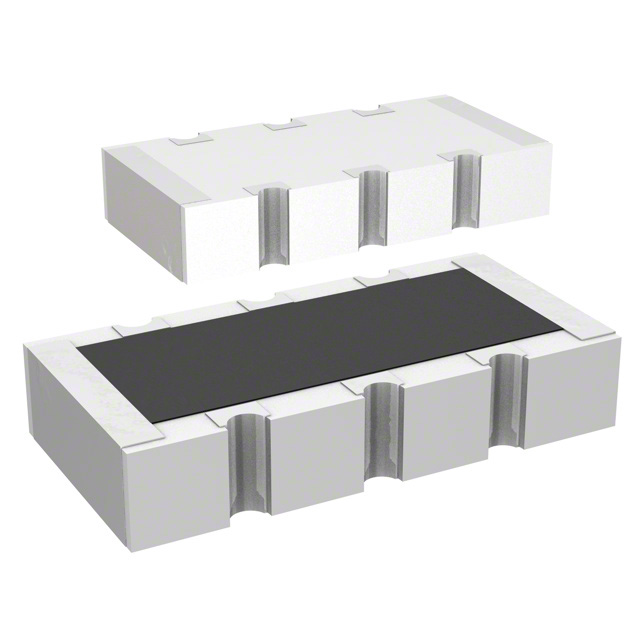

RAVF164DJT470R图片1
RAVF164DJT470R图片2
RAVF164DJT470R概述

Res Thick Film Array 470Ω 5% 0.25W1/4W 200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Convex SMD T/R

is manufactured by and is categorized in the Resistor Networks, Arrays category. RAVF164DJT470R is described as RES ARRAY 4 RES 470 OHM 1206. Perfect Parts is a supplier of Resistors and other Passives.


得捷:
RES ARRAY 4 RES 470 OHM 1206


艾睿:
Create more space in your circuit design by using this RAVF164DJT470R resistor array developed by SEI Stackpole Electronics that packs multiple resistors into one IC chip. This product&s;s 4 resistors have a value of 470 Ohm. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The RAVF164DJT470R part has a convex termination style. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. This product&s;s terminal pitch is 0.8 mm.


Chip1Stop:
Res Thick Film Array 470 Ohm 5% 0.25W1/4W 200ppm/ C ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R


RAVF164DJT470R中文资料参数规格
技术参数

容差 ±5 %

额定功率 0.25 W

电阻 470 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 8

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.5 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 汽车级 AEC-Q200

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

RAVF164DJT470R引脚图与封装图
RAVF164DJT470R引脚图
RAVF164DJT470R封装图

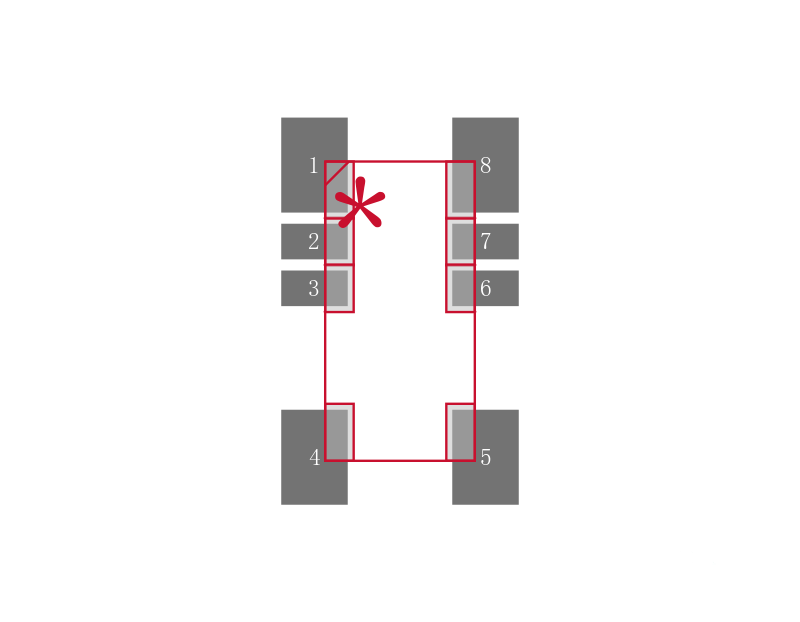

RAVF164DJT470R封装焊盘图
在线购买RAVF164DJT470R
型号: RAVF164DJT470R
制造商: Stackpole Electronics
描述:Res Thick Film Array 470Ω 5% 0.25W1/4W 200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Convex SMD T/R
替代型号RAVF164DJT470R
型号/品牌 代替类型 替代型号对比

RAVF164DJT470R

Stackpole Electronics

当前型号

当前型号

RAVF164DFT470R

Stackpole Electronics

类似代替

RAVF164DJT470R和RAVF164DFT470R的区别

CRC3A4E471JT

艾维克斯

类似代替

RAVF164DJT470R和CRC3A4E471JT的区别
