RMCF1206FT3K40

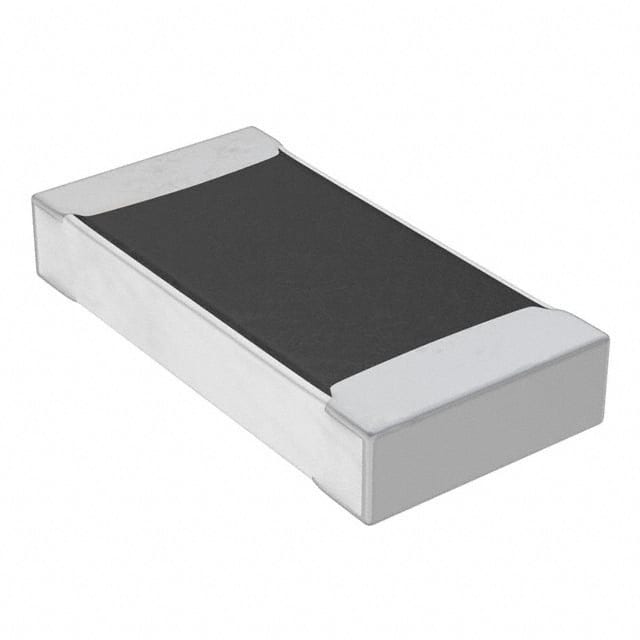

RMCF1206FT3K40图片1
RMCF1206FT3K40图片2
RMCF1206FT3K40图片3
RMCF1206FT3K40概述

1206 3.4kΩ ±1% 0.25W1/4W ±100ppm/℃

±1% 0.25W,1/4W 芯片 1206(3216 公制) 汽车级AEC-Q200 厚膜


得捷:
RES 3.4K OHM 1% 1/4W 1206


艾睿:
The RMCF1206FT3K40 fixed single surface-mount resistor from SEI Stackpole Electronics makes it easy to add resistors to your circuit board. This product has a resistance value of 3.4K Ohm. This part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 3.2 mm long, 0.55 mm tall and 1.6 mm deep. This device is made with thick film technology.


安富利:
Res Thick Film 1206 3.4K Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Paper T/R


Verical:
Res Thick Film 1206 3.4K Ohm 1% 0.25W1/4W ±100ppm/C Molded SMD Automotive T/R


RMCF1206FT3K40中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.25 W

产品系列 RMCP/RMCF

电阻 3.4 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 0.55 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

数据手册

在线购买RMCF1206FT3K40
型号: RMCF1206FT3K40
制造商: Stackpole Electronics
描述:1206 3.4kΩ ±1% 0.25W1/4W ±100ppm/℃
替代型号RMCF1206FT3K40
型号/品牌 代替类型 替代型号对比

RMCF1206FT3K40

Stackpole Electronics

当前型号

当前型号

MCR18EZHF3401

罗姆半导体

功能相似

RMCF1206FT3K40和MCR18EZHF3401的区别
