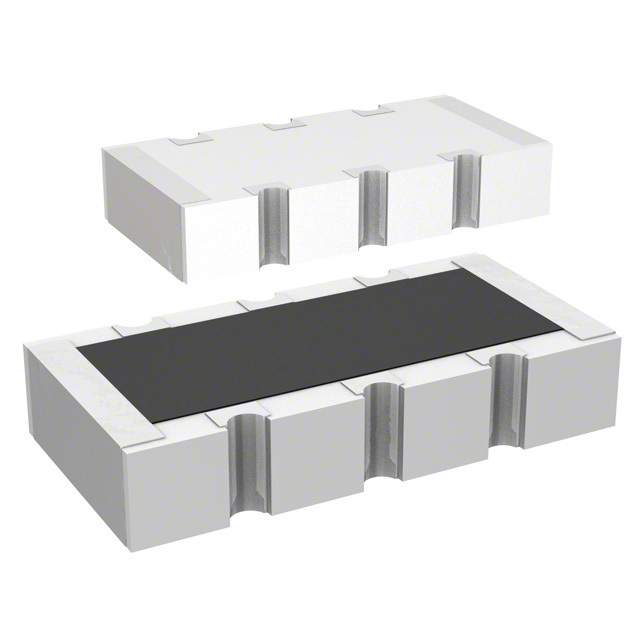

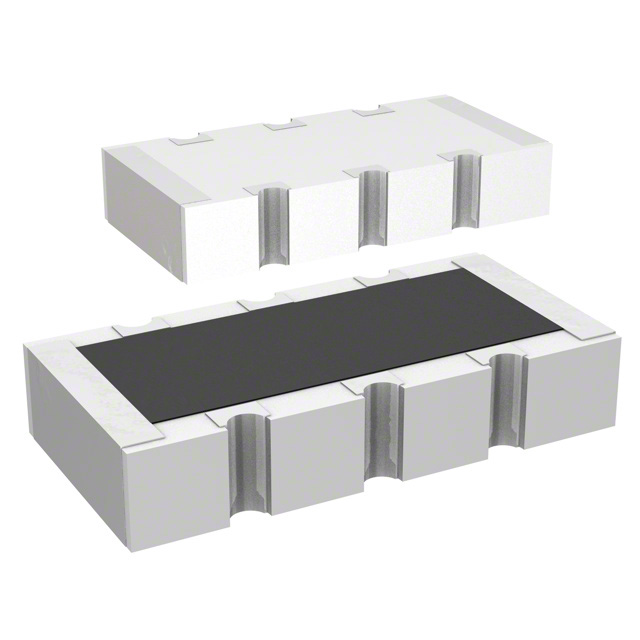

RAVF164DJT51R0

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.25W1/4W, 51Ω, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT

51 Ohm ±5% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1206 3216 Metric, Convex, Long Side Terminals

得捷:
RES ARRAY 4 RES 51 OHM 1206

艾睿:
Conserve space and power by adopting this RAVF164DJT51R0 resistor array from SEI Stackpole Electronics, allowing multiple configurations of resistors to be downsized into an IC. Its temperature coefficient is ±200 ppm/°C. This product&s;s 4 resistors have a value of 51 Ohm. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. It has 8 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device utilizes thick film technology. This product&s;s terminal pitch is 0.8 mm. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. The RAVF164DJT51R0 part has a convex termination style.

安富利:
Res Thick Film Array 51 Ohm 5% 1/4W ±200ppm/°C ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R

Chip1Stop:
Res Thick Film Array 51 Ohm 5% 0.25W1/4W ±200ppm/ÂÂ℃ ISOL Molded 8-Pin 12064 X 0603 Convex SMD T/R
