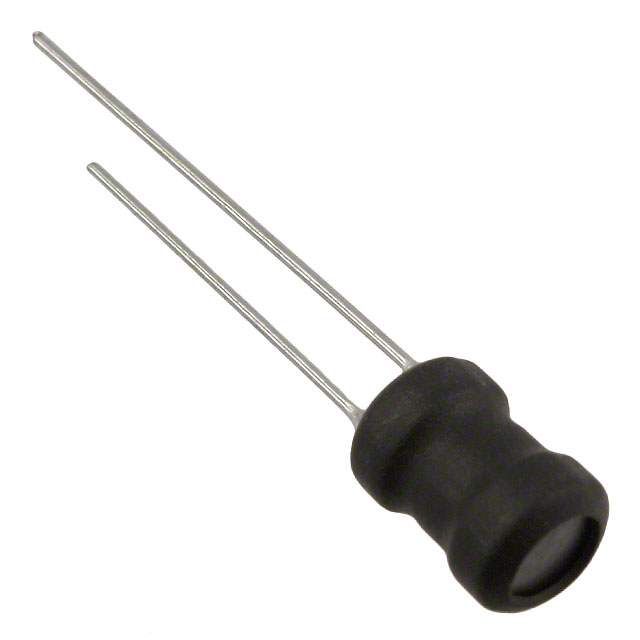

RLB0812-101KL图片1
RLB0812-101KL图片2
RLB0812-101KL图片3
RLB0812-101KL图片4
RLB0812-101KL图片5
RLB0812-101KL概述

径向电感器 Radial Inductors

Your electrical design will benefit from this power leaded inductor from Bourns. This part has a pitch of 3 mm. This leaded inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. It has a tolerance of 10%. This device is made with wirewound technology. It has an inductance of 100u H. This leaded inductor has a maximum DC current of 320m A with a maximum resistance of 600m Ohm. Its test frequency is 796K Hz, while its minimum self-resonant frequency is 4.2M Hz. This product is 11 mm tall with a diameter of 7.2 mm.

RLB0812-101KL中文资料参数规格
技术参数

额定电流 320 mA

容差 ±10 %

电感 100 µH

自谐频率 4.2 MHz

测试频率 796 kHz

电阻DC) ≤600 mΩ

工作温度Max 125 ℃

工作温度Min -40 ℃

电阻DC Max 600 mΩ

封装参数

安装方式 Through Hole

封装 Radial

外形尺寸

长度 10 mm

高度 11 mm

封装 Radial

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

RLB0812-101KL引脚图与封装图
RLB0812-101KL引脚图
RLB0812-101KL封装图
RLB0812-101KL封装焊盘图
在线购买RLB0812-101KL
型号: RLB0812-101KL
制造商: Bourns J.W. Miller 伯恩斯
描述:径向电感器 Radial Inductors
替代型号RLB0812-101KL
型号/品牌 代替类型 替代型号对比

RLB0812-101KL

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

RLB0812-101K

伯恩斯

完全替代

RLB0812-101KL和RLB0812-101K的区别
