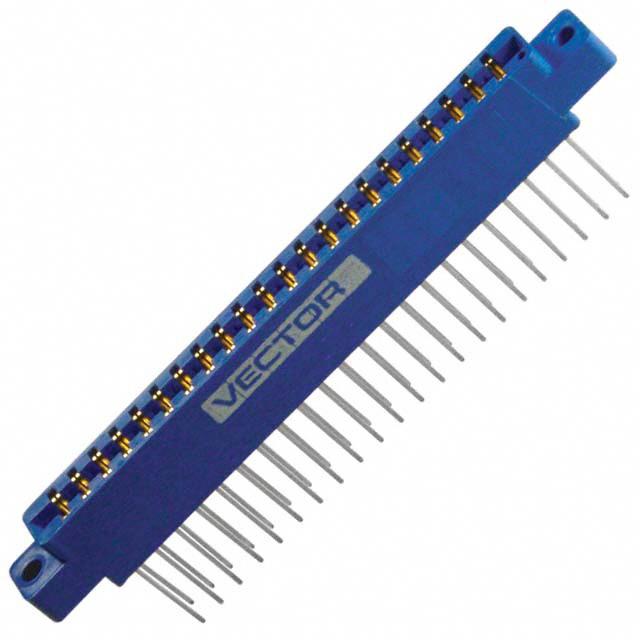

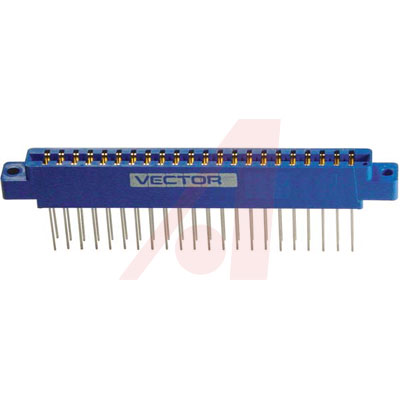

VECTOR ELECTRONICS R644-3C Connector, Card Edge, 44Contacts, Receptacle, 3.96mm, Wire Wrap
Phosphor Bronze Contact, Series R600 Edge Connectors
For use with RETMA EIA based VectorPak™ subracks, the R600 series wire-wrap and solder tail edge card connectors for 0.062" thick PCB"s are designed for low insertion force, minimum wear on PlugBord™ circuit board edge contacts. Mating contacts are gold/nickel plated for reliability. Highly efficient, 30 mV maximum contact voltage drop at 3 amps rated current. Insulation resistance is 5,000 Megohms at 500 VDC. Vectorbord\"ae Edge Card Connectors are supplied with between-contact polarizing keys. Contact plating 0.000010" gold over 0.000050" nickel.
* 19 Inch Rackmount Format
* Guide Positions at 0.25" Increments
* Adjustable for Height and Depth
* 0.080" Thick Clear Chromate Finish Aluminum Construction
* Sidewall Slots Provide Up to 1" of Vertical Adjustment Top and Bottom
* Rear Struts for Mounting Connectors
* Compatible with Vector Prototyping Boards and Backplanes See Pages 1592-1593
* 0.025" Square Wire-Wrap Terminals
* Phenolic, UL-94V-0 or Glass Filled Diallylphthalate UL-94V-1 or Polyester VALOX or equivalent UL-94V-0 Body Material
* Allows Three Level Wraps
* Use 28 to 32 AWG Wire
