RAVF104DJT47R0

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.25W1/4W, 47Ω, 25V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0804, CHIP, ROHS COMPLIANT

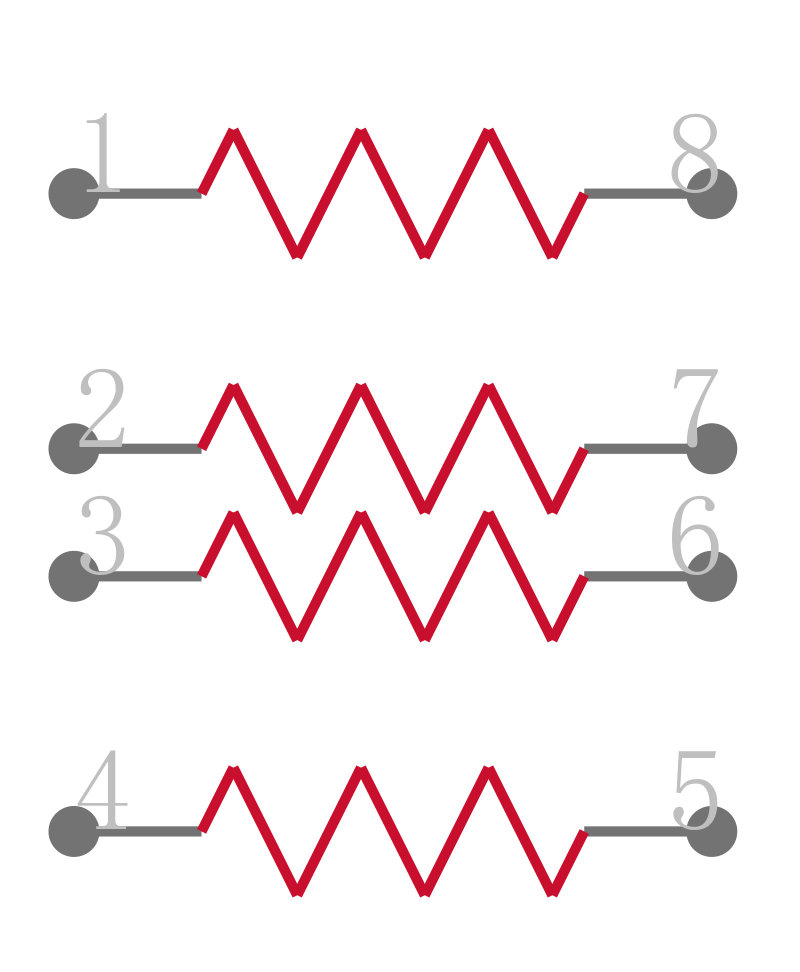

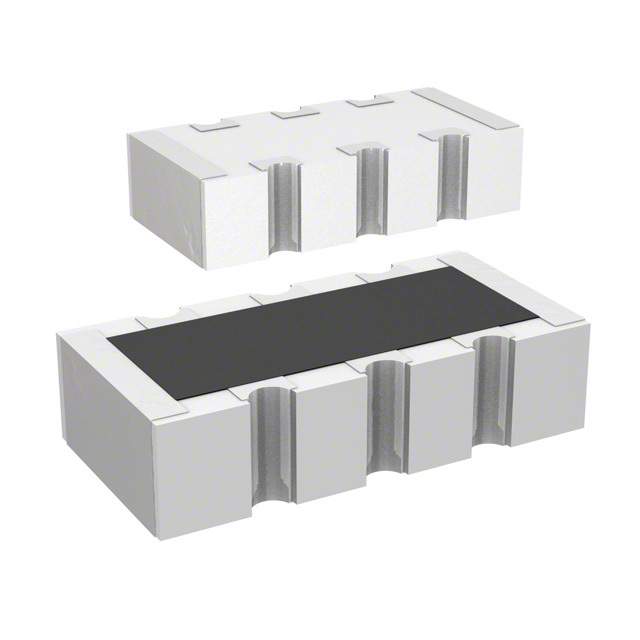

Create more space in your circuit design by using this resistor array developed by SEI that packs multiple resistors into one IC chip. This dependable part has a power rating of 0.25 1/4 W and a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. This product"s 4 resistors have a value of 47 Ohm. It has 8 terminals. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 2 mm long, 0.35 mm tall and 1 mm deep. This device is made with thick film technology. It has a tolerance of 5%. This part has an operating temperature of -55 to 155 °C. The RAVF104DJT47R0 part has a convex termination style. This product"s terminal pitch is 0.5 mm.
