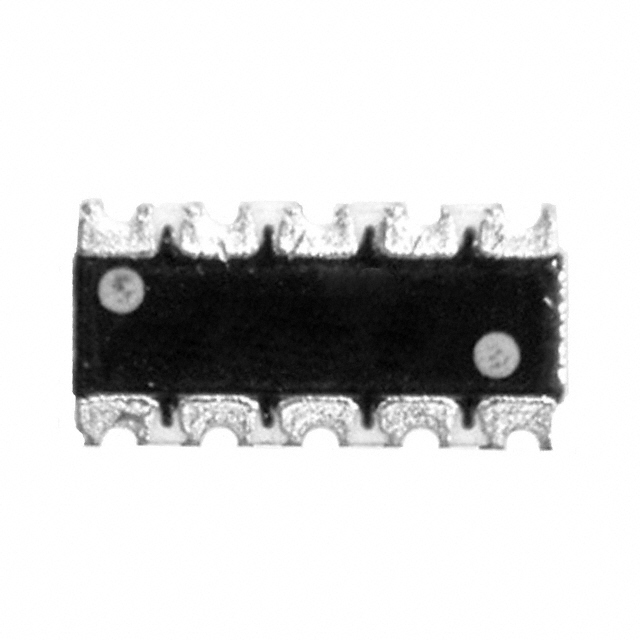

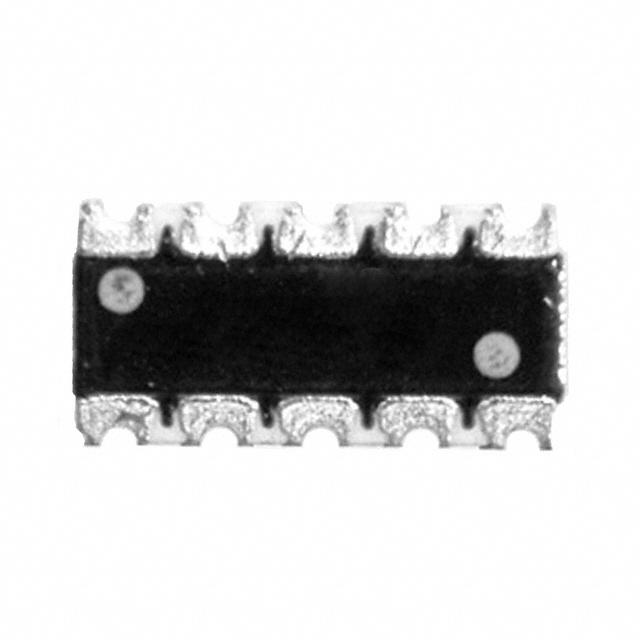

RACF164DJT1K00

Res Thick Film Array 1KΩ 5% ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Concave SMD T/R

1k Ohm ±5% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1206 3216 Metric, Concave, Long Side Terminals

得捷:
RES ARRAY 4 RES 1K OHM 1206

艾睿:
If you&s;re looking to conserve space in your circuit design, then this RACF164DJT1K00 resistor array from SEI Stackpole Electronics will save you valuable space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 4 resistors have a value of 1K Ohm. It has 8 terminals. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This product&s;s terminal pitch is 0.8 mm. It has a tolerance of 5%. The RACF164DJT1K00 part has a concave termination style.

Chip1Stop:
Res Thick Film Array 1K Ohm 5% ±200ppm/ÂÂ℃ ISOL Molded 8-Pin 12064 X 0603 Concave SMD Paper T/R

Verical:
Res Thick Film Array 1K Ohm 5% ±200ppm/C ISOL 8-Pin 12064 X 0603 Concave SMD Automotive T/R
