Inductor Power Wirewound 1.5uH 20% 1kHz 20Q-Factor Ferrite 8.5A 16mOhm DCR RDL Bag
无屏蔽 绕线 器 16 毫欧最大 径向,垂直圆柱
立创商城:
1.5uH ±20% 8.5A 16mΩ
得捷:
FIXED IND 1.5UH 8.5A 16 MOHM TH
艾睿:

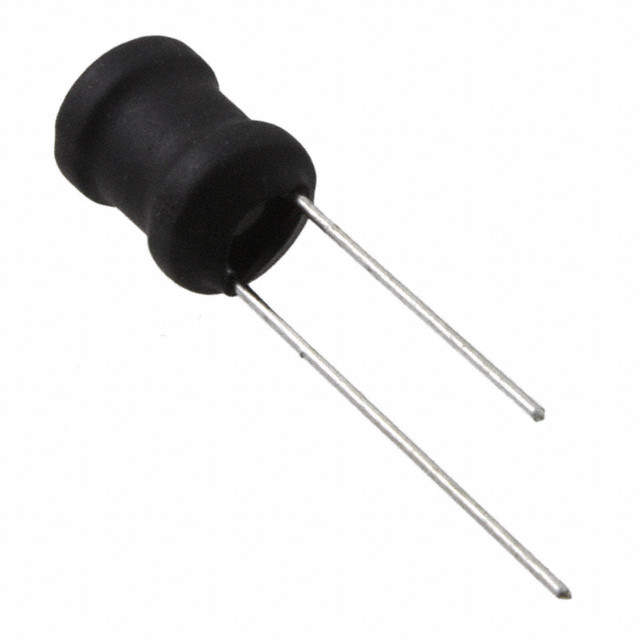

This power RLB9012-1R5ML leaded inductor from Bourns is constructed on a core with concentric leads on opposite ends of the core. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This leaded inductor has a maximum DC current of 8.5 A with a maximum resistance of 16m Ohm. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 100M Hz. This product is 12.2 mm tall with a diameter of 9 mm. This device is made with wirewound technology. It has an inductance of 1.5u H.
安富利:
Ind Power Wirewound 1.5uH 20% 1KHz 20Q-Factor Ferrite 8.5A RDL Bag
Verical:
Inductor Power Wirewound 1.5uH 20% 1KHz 20Q-Factor Ferrite 8.5A 0.016Ohm DCR RDL Bag
Online Components:
Inductor Power Wirewound 1.5uH 20% 1KHz 20Q-Factor Ferrite 8.5A 16mOhm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 1.5uH 20% 1KHz 20Q-Factor Ferrite 8.5A 16mOhm DCR RDL Bag
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RLB9012-1R5ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
6000-1R5M-RC 伯恩斯 | 类似代替 | RLB9012-1R5ML和6000-1R5M-RC的区别 |
6000-1R5M 伯恩斯 | 类似代替 | RLB9012-1R5ML和6000-1R5M的区别 |
