Inductor Power Wirewound 82uH 10% 1kHz 30Q-Factor Ferrite 1.3A 230mOhm DCR RDL Bag
无屏蔽 绕线 器 230 毫欧最大 径向,垂直圆柱
立创商城:
82uH ±10% 1.3A 230mΩ
得捷:
FIXED IND 82UH 1.3A 230 MOHM TH
艾睿:

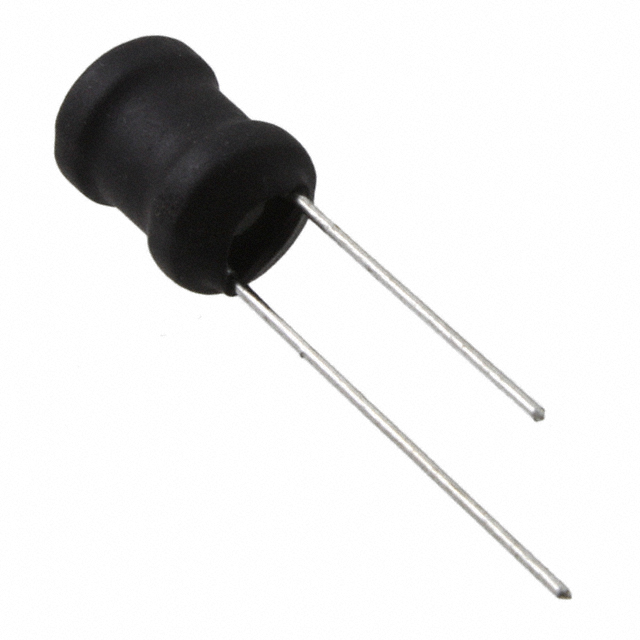

This power RLB9012-820KL leaded inductor from Bourns resists changes in electric current passing through it. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 125 °C. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 4.1M Hz. This product is 12.2 mm tall with a diameter of 9 mm. It has a tolerance of 10%. It has an inductance of 82u H. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 1.3 A with a maximum resistance of 230m Ohm.
安富利:
Ind Power Wirewound 82uH 10% 1KHz 30Q-Factor Ferrite 1.3A RDL Bag
Chip1Stop:
Ind Power Wirewound 82uH 10% 1KHz 30Q-Factor Ferrite 1.3A RDL Bag
Verical:
Inductor Power Wirewound 82uH 10% 1KHz 30Q-Factor Ferrite 1.3A 0.23Ohm DCR RDL Bag
Online Components:
Inductor Power Wirewound 82uH 10% 1KHz 30Q-Factor Ferrite 1.3A 230mOhm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 82uH 10% 1KHz 30Q-Factor Ferrite 1.3A 230mOhm DCR RDL Bag
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RLB9012-820KL Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
6000-820K-RC 伯恩斯 | 功能相似 | RLB9012-820KL和6000-820K-RC的区别 |
6000-820K 伯恩斯 | 功能相似 | RLB9012-820KL和6000-820K的区别 |
