Inductor Power Wirewound 47mH 10% 1kHz 15Q-Factor Ferrite 80mA 137.8Ω DCR RDL Bag
Inductor Power Wirewound 47mH 10% 1KHz 15Q-Factor Ferrite 80mA 137.8Ohm DCR RDL Bag
得捷:
FIXED IND 47MH 80MA 137.8 OHM TH
艾睿:

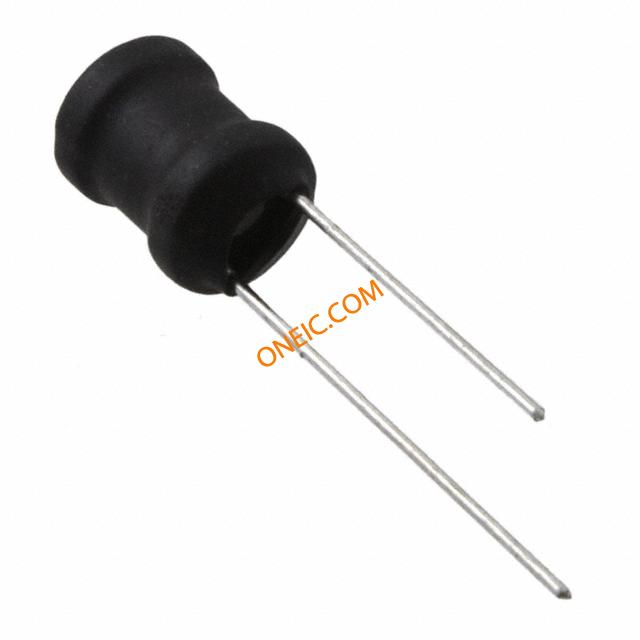

Resist changes in electric current flow in your electrical design with this power RLB9012-473KL leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 125 °C. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 120K Hz. This device utilizes wirewound technology. It has a tolerance of 10%. It has an inductance of 47m H. This leaded inductor has a maximum DC current of 80m A with a maximum resistance of 137.8 Ohm. This product is 12.2 mm tall with a diameter of 9 mm.
安富利:
Ind Power Wirewound 47mH 10% 1KHz 15Q-Factor Ferrite 80mA RDL Bag
Verical:
Inductor Power Wirewound 47000uH 10% 1KHz 15Q-Factor Ferrite 0.08A 137.8Ohm DCR RDL Bag
Online Components:
Inductor Power Wirewound 47mH 10% 1KHz 15Q-Factor Ferrite 80mA 137.8Ohm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 47mH 10% 1KHz 15Q-Factor Ferrite 80mA 137.8Ohm DCR RDL Bag
