Inductor Power Wirewound 8.2mH 10% 1kHz 15Q-Factor Ferrite 180mA 22.7Ω DCR RDL Bag
Inductor Power Wirewound 8.2mH 10% 1KHz 15Q-Factor Ferrite 180mA 22.7Ohm DCR RDL Bag
得捷:
FIXED IND 8.2MH 180MA 22.7OHM TH
立创商城:
8.2mH ±10% 180mA 22.7Ω
贸泽:
Fixed Inductors 8200uH 10% .18A
艾睿:

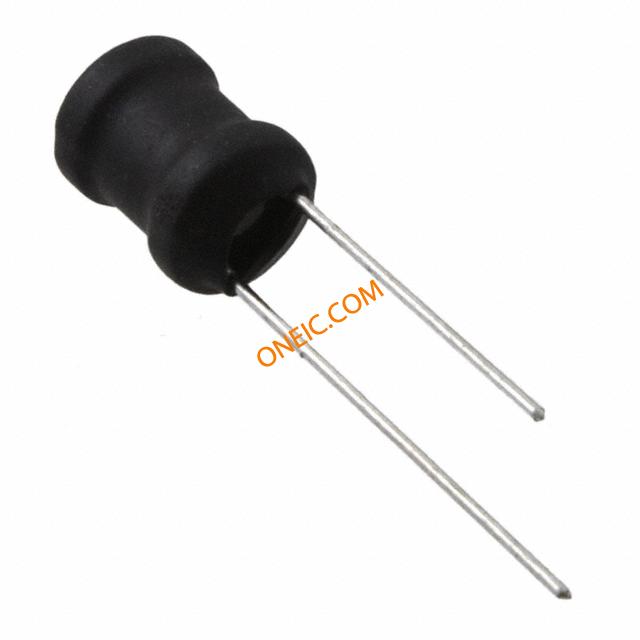

This power RLB9012-822KL leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 12.2 mm tall with a diameter of 9 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 350K Hz. It has an inductance of 8.2m H. This device is made with wirewound technology. This leaded inductor has a maximum DC current of 180m A with a maximum resistance of 22.7 Ohm. It has a tolerance of 10%.
安富利:
Ind Power Wirewound 8.2mH 10% 1KHz 15Q-Factor Ferrite 180mA RDL Bag
Chip1Stop:
Ind Power Wirewound 8.2mH 10% 1KHz 15Q-Factor Ferrite 180mA RDL Bag
Verical:
Inductor Power Wirewound 8200uH 10% 1KHz 15Q-Factor Ferrite 0.18A 22.7Ohm DCR RDL Bag
Online Components:
Inductor Power Wirewound 8.2mH 10% 1KHz 15Q-Factor Ferrite 180mA 22.7Ohm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 8.2mH 10% 1KHz 15Q-Factor Ferrite 180mA 22.7Ohm DCR RDL Bag
