固定电感器 1800uH 10% .39A
Inductor Power Wirewound 1.8mH 10% 1KHz 15Q-Factor Ferrite 390mA 5.3Ohm DCR RDL Bag
得捷:
FIXED IND 1.8MH 390MA 5.3 OHM TH
立创商城:
1.8mH ±10% 390mA 5.3Ω
贸泽:
固定电感器 1800uH 10% .39A
艾睿:

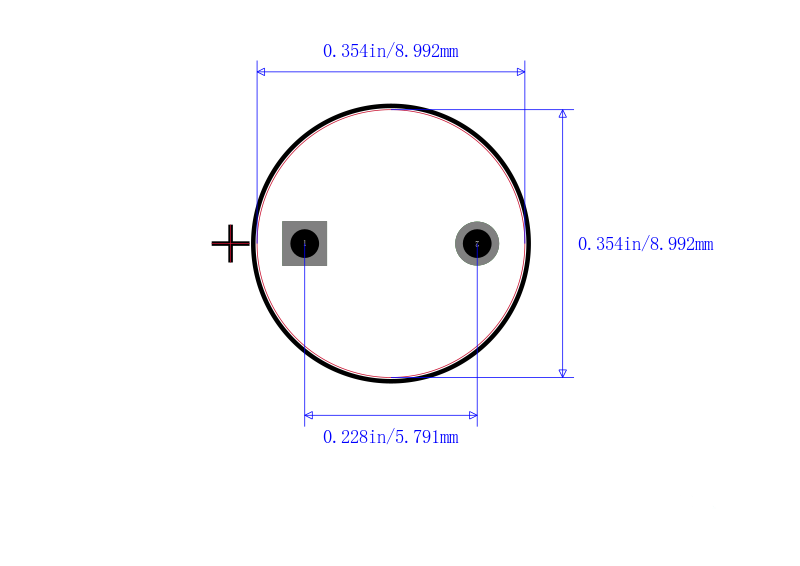

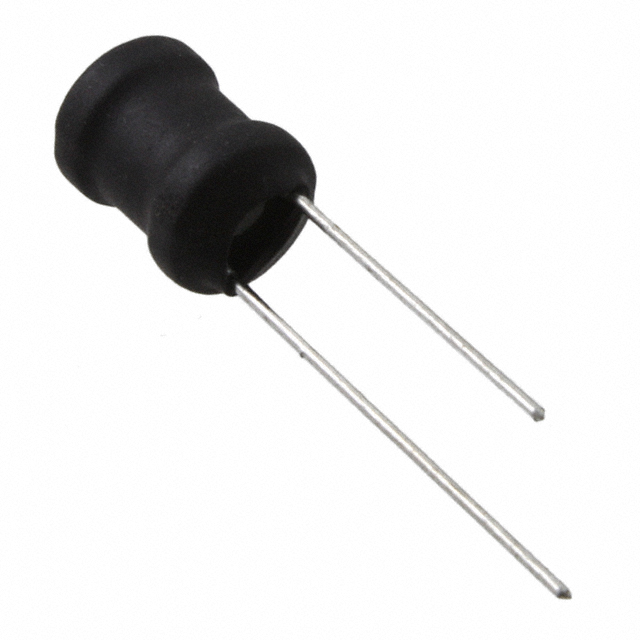

This power RLB9012-182KL leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 12.2 mm tall with a diameter of 9 mm. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 390m A with a maximum resistance of 5.3 Ohm. It has an inductance of 1.8m H. This device is made with wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1M Hz.
安富利:
Ind Power Wirewound 1.8mH 10% 1KHz 15Q-Factor Ferrite 390mA RDL Bag
Verical:
Inductor Power Wirewound 1800uH 10% 1KHz 15Q-Factor Ferrite 0.39A 5.3Ohm DCR RDL Bag
MASTER:
Inductor Power Wirewound 1.8mH 10% 1KHz 15Q-Factor Ferrite 390mA 5.3Ohm DCR RDL Bag
Online Components:
Inductor Power Wirewound 1.8mH 10% 1KHz 15Q-Factor Ferrite 390mA 5.3Ohm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 1.8mH 10% 1KHz 15Q-Factor Ferrite 390mA 5.3Ohm DCR RDL Bag
