Inductor Power Wirewound 27mH 10% 1kHz 15Q-Factor Ferrite 100mA 82.7Ω DCR RDL Bag
Inductor Power Wirewound 27mH 10% 1KHz 15Q-Factor Ferrite 100mA 82.7Ohm DCR RDL Bag
立创商城:
27mH ±10% 100mA 82.7Ω
得捷:
FIXED IND 27MH 100MA 82.7 OHM TH
艾睿:

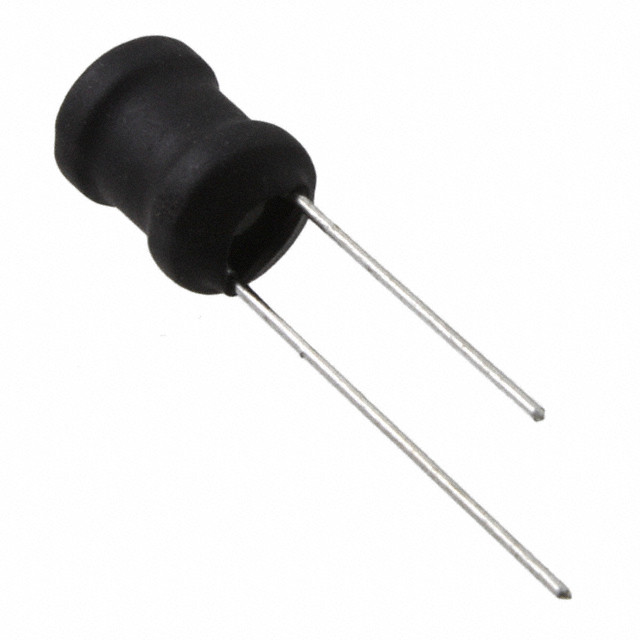

Use this power RLB9012-273KL leaded inductor from Bourns to resist changes in electric current in an electronic circuit. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 125 °C. It has a tolerance of 10%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 190K Hz. It has an inductance of 27m H. This device utilizes wirewound technology. This product is 12.2 mm tall with a diameter of 9 mm. This leaded inductor has a maximum DC current of 100m A with a maximum resistance of 82.7 Ohm.
安富利:
Ind Power Wirewound 27mH 10% 1KHz 15Q-Factor Ferrite 100mA RDL Bag
Verical:
Inductor Power Wirewound 27000uH 10% 1KHz 15Q-Factor Ferrite 0.1A 82.7Ohm DCR RDL Bag
Online Components:
Inductor Power Wirewound 27mH 10% 1KHz 15Q-Factor Ferrite 100mA 82.7Ohm DCR RDL Bag
Electro Sonic:
Inductor Power Wirewound 27000uH 10% 1KHz 15Q-Factor Ferrite 0.1A 82.7Ohm DCR RDL Bag
