RL622-820K-RC

径向引线RF扼流圈的DC / DC转换器台式机笔记本 Radial Lead RF Choke DC/DC converters Desktop notebooks

RF Choke Wirewound 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A 230mOhm DCR RDL Bag

得捷:
FIXED IND 82UH 1.1A 230 MOHM TH

贸泽:
Fixed Inductors 82uH 10% 2.52MHz 1.1A

艾睿:

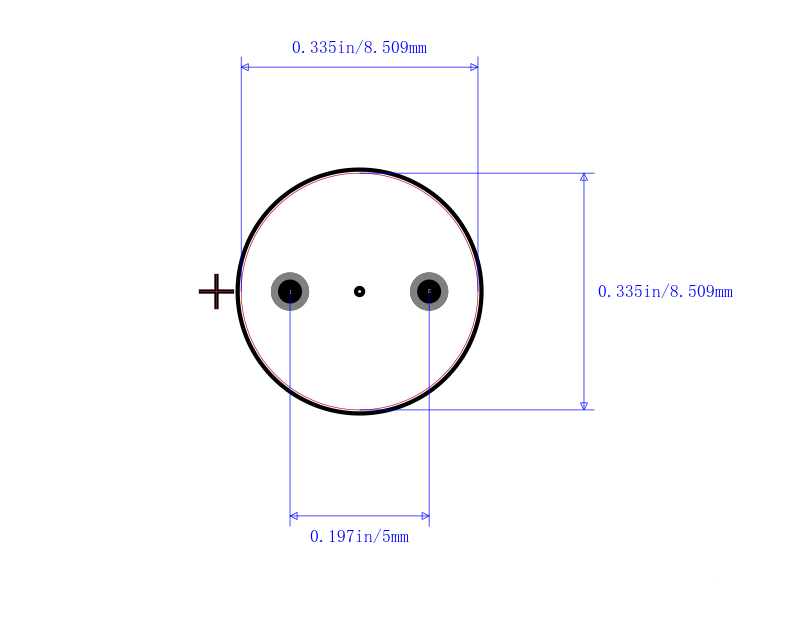

Resist changes in electric current flow in your electrical design with this rf choke RL622-820K-RC leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 11 mm tall with a diameter of 8.5 mm. It has a tolerance of 10%. This device utilizes wirewound technology. This leaded inductor has a maximum DC current of 1.1 A with a maximum resistance of 230m Ohm. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 4.1MTyp Hz. It has an inductance of 82u H.

安富利:
Ind RF Choke 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A RDL Bag

Chip1Stop:
RF Choke Wirewound 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A 230mOhm DCR RDL Bag

TME:
Inductor: wire; THT; 82uH; 1.1A; 230mΩ; ±10%; Body dim: Ø8.5x11mm

Verical:
RF Choke Wirewound 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A 0.23Ohm DCR RDL Bag

Newark:
# BOURNS JW MILLER  RL622-820K-RC  RF Choke, Radial Lead, RL622 Series, 82 µH, 1.1 A, 0.23 ohm, ± 10%, 4.1 MHz

MASTER:
RF Choke Wirewound 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A 230mOhm DCR RDL Bag

Online Components:
RF Choke Wirewound 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A 230mOhm DCR RDL Bag

Electro Sonic:
RF Choke Wirewound 82uH 10% 2.52MHz 30Q-Factor Ferrite 1.1A 230mOhm DCR RDL Bag
