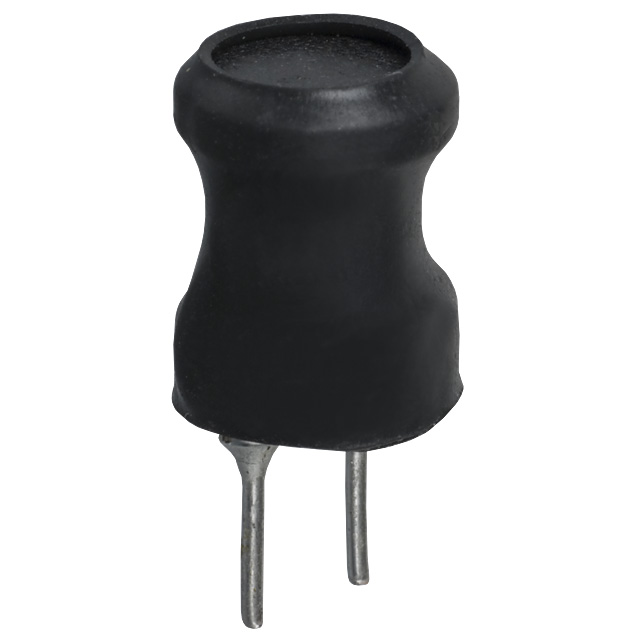

RL622-683K-RC

径向引线RF扼流圈的DC / DC转换器台式机笔记本 Radial Lead RF Choke DC/DC converters Desktop notebooks

RF Choke Wirewound 68mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 150Ohm DCR RDL Bag

得捷:
FIXED IND 68MH 20MA 150 OHM TH

立创商城:
68mH ±10% 20mA 150Ω

艾睿:
Resist changes in electric current flow in your electrical design with this rf choke RL622-683K-RC leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. This product is 11 mm tall with a diameter of 8.5 mm. It has a tolerance of 10%. This leaded inductor has a maximum DC current of 20m A with a maximum resistance of 150 Ohm. It has an inductance of 68m H. This device utilizes wirewound technology. Its test frequency is 79.6K Hz, while its minimum self-resonant frequency is 100KTyp Hz.

安富利:
Ind RF Choke 68mH 10% 79.6KHz 20Q-Factor Ferrite 20mA RDL Bag

Verical:
RF Choke Wirewound 68000uH 10% 79.6KHz 20Q-Factor Ferrite 0.02A 150Ohm DCR RDL Bag

Newark:
# BOURNS JW MILLER  RL622-683K-RC  RF Choke, Radial Lead, RL622 Series, 68 mH, 20 mA, 150 ohm, ± 10%, 100 kHz

Online Components:
RF Choke Wirewound 68mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 150Ohm DCR RDL Bag

Electro Sonic:
RF Choke Wirewound 68mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 150Ohm DCR RDL Bag
