RL622-823K-RC

径向引线RF扼流圈的DC / DC转换器台式机笔记本 Radial Lead RF Choke DC/DC converters Desktop notebooks

RF Choke Wirewound 82mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 212Ohm DCR RDL Bag

立创商城:
82mH ±10% 20mA 212Ω

得捷:
FIXED IND 82MH 20MA 212 OHM TH

艾睿:

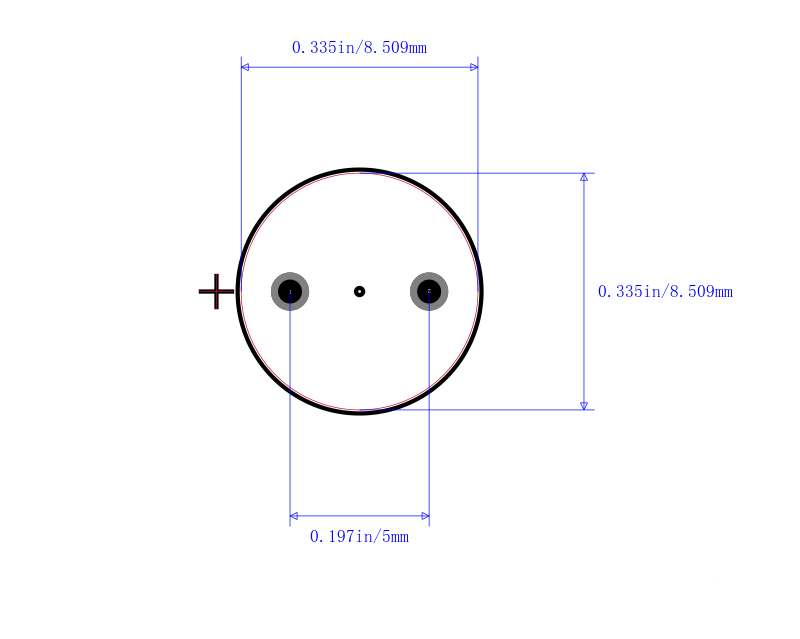

This rf choke RL622-823K-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -55 °C to 105 °C. Its test frequency is 79.6K Hz, while its minimum self-resonant frequency is 100KTyp Hz. It has a tolerance of 10%. This product is 11 mm tall with a diameter of 8.5 mm. This leaded inductor has a maximum DC current of 20m A with a maximum resistance of 212 Ohm. It has an inductance of 82m H. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Radial; 82, 000uH; 10%; 212 Ohm DCR Max

安富利:
Ind RF Choke 82mH 10% 79.6KHz 20Q-Factor Ferrite 20mA RDL Bag

TME:
Inductor: wire; THT; 82000uH; 0.02A; 212Ω; ±10%; Body dim: Ø8.5x11mm

Verical:
RF Choke Wirewound 82000uH 10% 79.6KHz 20Q-Factor Ferrite 0.02A 212Ohm DCR RDL Bag

MASTER:
RF Choke Wirewound 82mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 212Ohm DCR RDL Bag

Online Components:
RF Choke Wirewound 82mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 212Ohm DCR RDL Bag

Electro Sonic:
RF Choke Wirewound 82mH 10% 79.6KHz 20Q-Factor Ferrite 20mA 212Ohm DCR RDL Bag

Win Source:
FIXED IND 82MH 20MA 212 OHM TH / 82 mH Unshielded Drum Core, Wirewound Inductor 20 mA 212Ohm Max Radial, Vertical Cylinder
