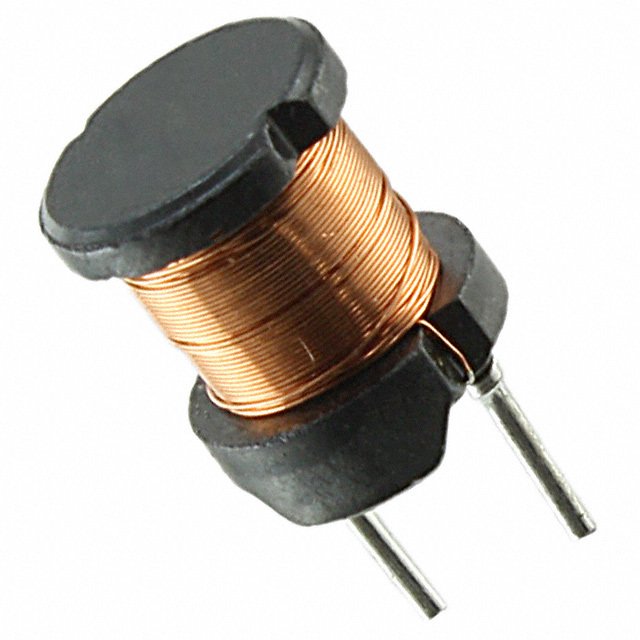

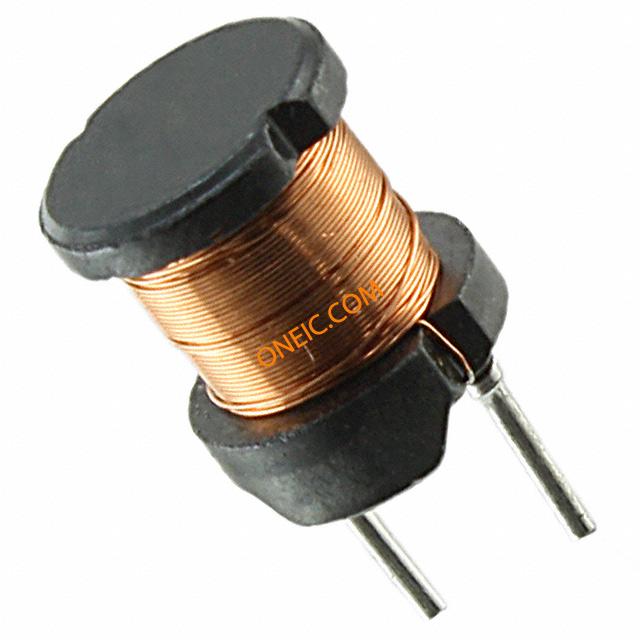

RL895-103K-RC

径向引线RF扼流圈 Radial Lead RF Choke

10 mH 无屏蔽 绕线 器 89 mA 22 欧姆最大 径向，垂直圆柱（开放）

得捷:
FIXED IND 10MH 89MA 22 OHM TH

立创商城:
10mH ±10% 89mA 22Ω

艾睿:
This rf choke RL895-103K-RC leaded inductor from Bourns is available for both power applications and RF applications. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -30 °C to 100 °C. This product is 9.5 mm tall with a diameter of 8.3 mm. It has an inductance of 10m H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 400KTyp Hz. This leaded inductor has a maximum DC current of 89m A with a maximum resistance of 22 Ohm. This device utilizes bobbin core technology. It has a tolerance of 10%.

安富利:
Ind RF Choke 10mH 10% 1KHz 80Q-Factor Ferrite 89mA Radial Bulk

Verical:
RF Choke Bobbin Core 10000uH 10% 1KHz 80Q-Factor Ferrite 0.089A 22Ohm DCR RDL Bag

MASTER:
RF Choke Bobbin Core 10mH 10% 1KHz 80Q-Factor Ferrite 89mA 22Ohm DCR RDL Bag

Online Components:
RF Choke Bobbin Core 10mH 10% 1KHz 80Q-Factor Ferrite 89mA 22Ohm DCR RDL Bag

Electro Sonic:
RF Choke Bobbin Core 10mH 10% 1KHz 80Q-Factor Ferrite 89mA 22Ohm DCR RDL Bag
