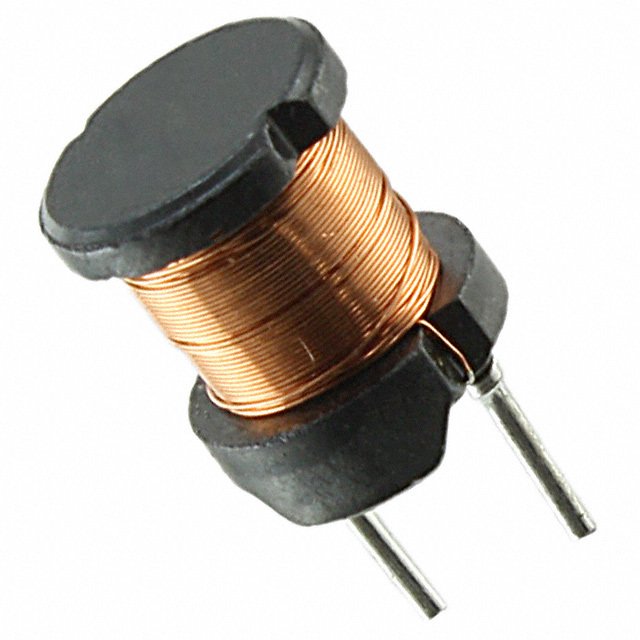

RL895-223K-RC

径向引线RF扼流圈 Radial Lead RF Choke

22 mH 无屏蔽 绕线 器 59 mA 44.9 欧姆最大 径向，垂直圆柱（开放）

得捷:
FIXED IND 22MH 59MA 44.9 OHM TH

立创商城:
22mH ±10% 44.9Ω

艾睿:
Jump-start your electrical design by including this rf choke RL895-223K-RC leaded inductor from Bourns. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -30 °C and a maximum of 100 °C. This leaded inductor has a maximum DC current of 59m A with a maximum resistance of 44.9 Ohm. This product is 9.5 mm tall with a diameter of 8.3 mm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 270KTyp Hz. This device is made with bobbin core technology. It has a tolerance of 10%. It has an inductance of 22m H.

Electro Sonic:
RF Choke Bobbin Core 22mH 10% 1KHz 70Q-Factor Ferrite 59mA 44.9Ohm DCR RDL Bag
