RL895-473K-RC

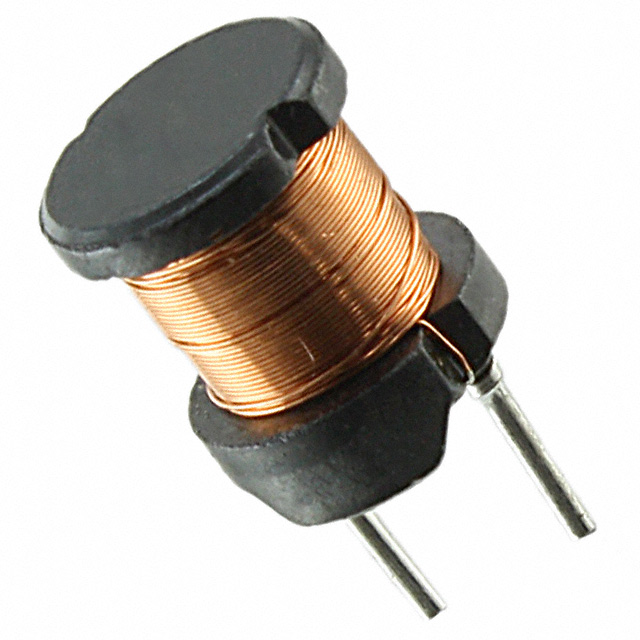

径向引线RF扼流圈 Radial Lead RF Choke

47mH Unshielded Wirewound Inductor 38mA 96.4Ohm Max Radial, Vertical Cylinder Open

立创商城:
47mH ±10% 38mA 96.4Ω

得捷:
FIXED IND 47MH 38MA 96.4 OHM TH

艾睿:
This rf choke RL895-473K-RC leaded inductor from Bourns is very suitable for tape and reel packaging for auto placement. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -30 °C and a maximum of 100 °C. This device is made with bobbin core technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 170KTyp Hz. This product is 9.5 mm tall with a diameter of 8.3 mm. It has an inductance of 47m H. This leaded inductor has a maximum DC current of 38m A with a maximum resistance of 96.4 Ohm. It has a tolerance of 10%.

安富利:
Ind RF Choke Bobbin Core 47mH 10% 1KHz 60Q-Factor Ferrite 38mA RDL Bag

Electro Sonic:
RF Choke Bobbin Core 47mH 10% 1KHz 60Q-Factor Ferrite 38mA 96.4Ohm DCR RDL Bag
