RSF1JT1K80

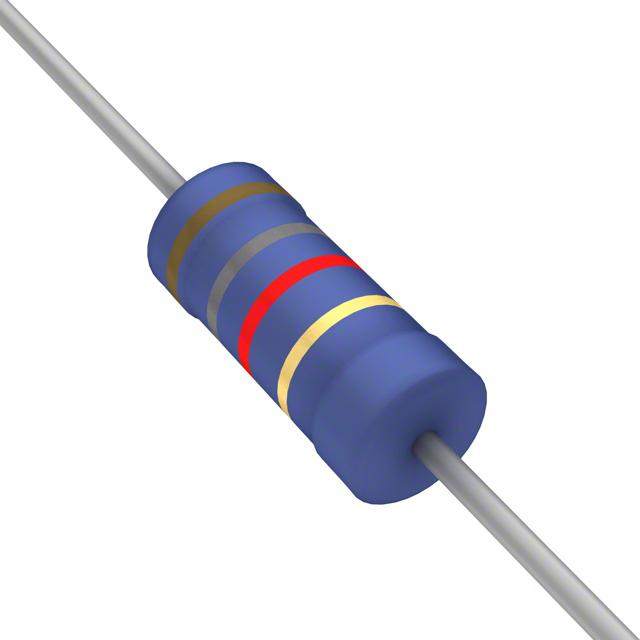

RSF1JT1K80图片1
RSF1JT1K80图片2
RSF1JT1K80概述

1.8kΩ ±5% 1W ±200ppm/℃ Φ4.50mm

1.8 kOhms ±5% 1W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film


得捷:
RES 1.8K OHM 5% 1W AXIAL


艾睿:
Look no further than SEI Stackpole Electronics&s; RSF1JT1K80 fixed single through-hole resistor, a cost-effective component that can be easily soldered to any printed circuit board. This part has a power rating of 1 W. This product has a resistance value of 1.8K Ohm. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This part has an operating temperature of -55 to 235 °C. The RSF1JT1K80 part has an axial termination style. This product is 11 mm long. This device is made with metal oxide technology. It has a tolerance of 5%.


Chip1Stop:
Res Metal Oxide 1.8K Ohm 5% 1W ±200ppm/ÂÂ℃ Conformal Coated AXL T/R


Verical:
Res Metal Oxide 1.8K Ohm 5% 1W ±200ppm/C Conformal Coated AXL T/R


RSF1JT1K80中文资料参数规格
技术参数

容差 ±5 %

额定功率 1 W

产品系列 RSF

电阻 1.8 KΩ

阻值偏差 ±5 %

工作温度Max 235 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 11 mm

直径 Φ4.50mm

脚长度 28 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 235℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 2500

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

数据手册

RSF1JT1K80引脚图与封装图
RSF1JT1K80引脚图
RSF1JT1K80封装图
RSF1JT1K80封装焊盘图
